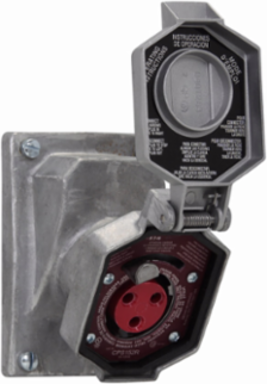

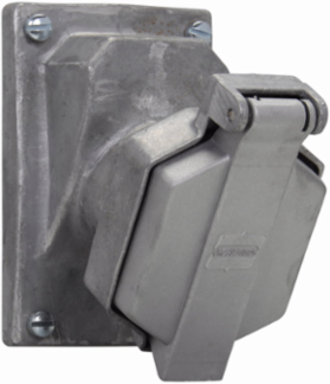

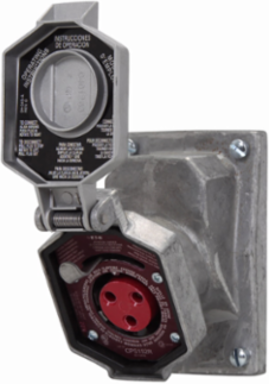

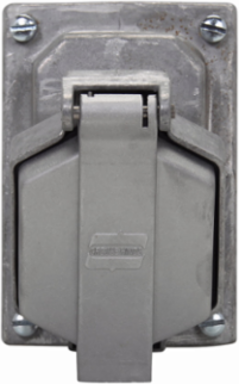

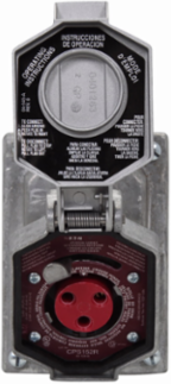

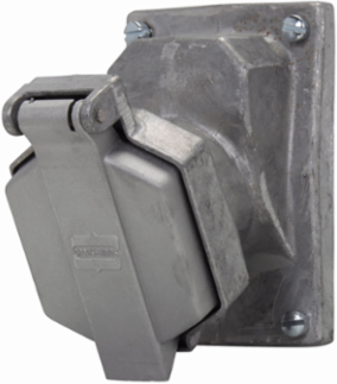

Crouse-Hinds CPS732R Arktite Receptacle, 7A/30A Amperage, 125-250 Vac/480 Vac Voltage, Brass Contacts
- MPN: CPS732R
- UPC: 782274186207
- PPN: CRH-CPS732R
CAD
$2339.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Arktite Receptacle, 7A/30A Amperage, 125-250 Vac/480 Vac Voltage, Brass Contacts
Documentation & Downloads
Specifications
Key Specifications
- Grounding style
- Style 2
- Configuration
- Three-wire, four-pole
- Horsepower
- 1 hp/3 hp
- Material
- Copper-free aluminum
- Special features
- Factory sealed
Amperage Rating7A/30A
Voltage rating125-250 Vac/480 Vac
Frequency rating60 Hz
Contact materialBrass
TypeDelayed action circuit breaking
Certifications And Compliances
- Area classification
- Hazardous/Classified Locations
- NEC hazardous rating
- Class I, Division 1
Standards typeNEC/CEC
General
- UPC
- 782274186207
- Product Height
- 6.72 in
- Product Weight
- 2.2 lb
Product Length/Depth5.125 in
Product Width3.5 in
