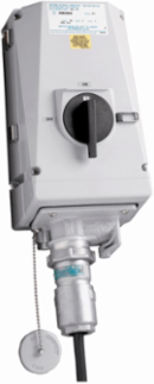

Crouse-Hinds CSR3352 Arktite Interlocked Receptacle, 30A, 1 Inch, Fused, IP66, Brass Contacts, 250-600 Vac
- MPN: CSR3352
- UPC: 782274229829
- PPN: CRH-CSR3352
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Arktite Interlocked Receptacle, 30A, 1 Inch, Fused, IP66, Brass Contacts, 250-600 Vac
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 30A |
|---|---|
| Fusing | Fused |
| Horsepower | 10 hp/20 hp/25 hp |
| Material | Krydon fiberglass-reinforced polyester |
| Trade size | 1" |
|---|---|
| Voltage rating | 250-600 Vac |
| Grounding style | Style 2 |
| Contact material | Brass |
General
| UPC | 782274229829 |
|---|---|
| Product Height | 18.26 in |
| Product Weight | 18.3 lb |
| Product Length/Depth | 8 in |
|---|---|
| Product Width | 7.78 in |
Certifications And Compliances
| Area classification | Ordinary/Non-Hazardous Locations |
|---|---|
| NEMA Rating | 3 |
| Standards type | NEC/CEC |
|---|---|
| Ingress protection (IP) ratings | IP66 |
