Crouse-Hinds TECK100 7S Armoured Cable Gland, Steel, Outer Sheath 1.19-1.37 Inch, 1" NPT
- MPN: TECK100 7S
- UPC: 782274117287
- PPN: CRH-TECK100 7S
CAD
$30.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

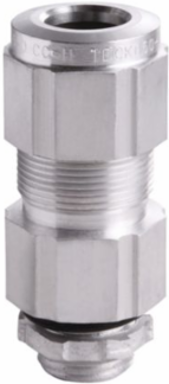

Armoured Cable Gland, Steel, Outer Sheath 1.19-1.37 Inch, 1" NPT
Documentation & Downloads
Specifications
Key Specifications
- Protection type
- General purpose
- Gland type
- Armoured
- Thread Size
- 1"
- Armor (min/max)
- 1.08-1.29"
Cable typeTECK armored
MaterialSteel
Thread typeNPT
Outer sheath (min/max)1.19-1.37"
Certifications And Compliances
- Area classification
- Hazardous/Classified Locations
- NEC hazardous rating
- Class I, Division 1
Standards typeNEC/CEC
NEMA Rating4
General
- UPC
- 782274117287
- Product Height
- 2.4 in
- Product Weight
- 2.5 lb
Product Length/Depth3.38 in
Product Width2.4 in
