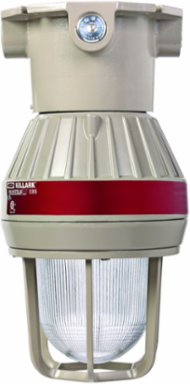

Killark EBSEL1030X2 Explosion Proof LED Emergency Fixture 10W 3/4 Inch Ceiling, 1081 Lumens, NEMA 4
- MPN: EBSEL1030X2
- UPC: 783936083148
- PPN: HBL-EBSEL1030X2
- UNSPSC: 39111710
CAD
$2358.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EBS 10W/30V DC EL 3/4" Ceiling
Features
- LED Heads provide clear crisp illumination at 5000° Kelvin
- LED Head L70 value 100,000 hours for minimal maintenance
- Two head models up to 500% brighter than competitive conventional units
- Enclosure Type 4 (NEMA 4) for wet and harsh locations
- Group B is standard when using EBSHK type heads
- Automatic Safety Disconnect – Removing main cover disconnects battery power
- Ambient Suitability 0°C to 45°C Battery Unit Heads to 55°
- Compact unit requires only two mounting points
- World Voltage 120-277 VAC 50/60Hz input Other Features
- High % of lumens maintained during 90 minute egress cycle
- EBSHK type heads are fully adjustable on unit or remote when ordered with RFSL Factory Sealed mounting kits
- EBSEL type heads are factory sealed on their EZ type mounting boxes
- Heads can be remote mounted over 300’ from battery unit
- Ni-Cad sealed batteries provide 90 minutes of illumination
- Integral base unit LED pilot light indicates AC power is present
- Choice of Integral or Remote Push-To-Test station to verify system operation
- Vapor Capsule to inhibit corrosion is standard with main enclosure unit
- Terminal Blocks identified for incoming and outgoing connections
- The EBS Series Explosion Proof LED Emergency Battery Backup System is designed for egress or anti-panic applications. This fixture is made with a cast copper-free aluminum housing and fixture heads that are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Optic Type
- Glass Globe - Clear
- Voltage Rating
- 120-277 VAC
- Finish Type
- Powder Epoxy Paint
- Mounting Type
- Ceiling
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Lumens Per Watt
- 108.1
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936083148
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Lumens1081
Special FeaturesThe EBS Series Explosion Proof LED Emergency Battery Backup System is designed for egress or anti-panic applications. This fixture is made with a cast copper-free aluminum housing and fixture heads that are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Wattage10 W
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceEBS 10W30VDC EL 3/4" CEILING
Harmonization Code9405116020
MSDS FlagNo
Lumen Range0-2,000 lm
Light SourceLED
SeriesEBS Series
BOX SIZE(in)
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
