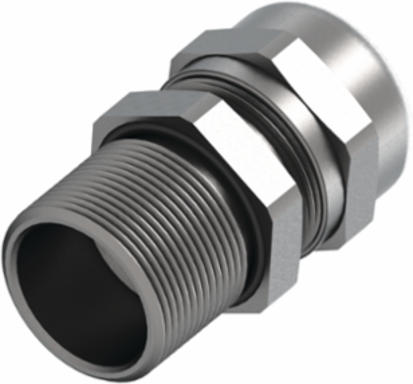

nVent Hoffman EBU2MXSWSLE Hazloc Cable Glands M25x1.5, IP66/68, Stainless Steel, Silicone Seal
- MPN: EBU2MXSWSLE
- UPC: 783510306458
- PPN: HOF-EBU2MXSWSLE
CAD
$128.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hazloc Cable Glands M25x1.5, IP66/68, Stainless Steel, Silicone Seal
Features
- Suitable for non-armored cables in flameproof (ex d), increased safety (ex e) and dust (ex tb) applications
- Allow for a wider clamping range in a single gland with 3 levels of removable seals
- All metric thread cable glands are packaged as kits; each kit includes a chloroprene washer, a locknut and an earthtag
- "All NPT thread cable glands are packaged as kits; each kit includes a locknut and an earthtag (except for NPT 3/8"" cable glands which do not include locknuts or earthtags)"
- Available in Metric (M) and NPT (N) thread type
- Operating temperature from -40 C to 80 C with chloroprene seal and -60 C to 80C with silicon seal in Ex d/e/tb application
- Operating temperature from -40 C to 80 C with chloroprene seal and -60 C to 140 C with silicon seal in Ex e/tb application
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Brushed
- Clamping Range
- 0.39
- IP Rating
- IP66/68 (EN60529)
- Works With
- NEMA & IEC
MaterialStainless Steel
Thread Size (TS)M25 x 1.5
SealSilicone
Weight0.1
