Nvent Hoffman ECL1207060PB ComLine OSP Type 4X Cabinet 1581x700x600mm, Aluminum, 25 Rack Units
Nvent Hoffman ECL1207060PB ComLine OSP Type 4X Cabinet 1581x700x600mm, Aluminum, 25 Rack Units
- MPN: ECL1207060PB
- UPC: 783510211516
- PPN: HOF-ECL1207060PB
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

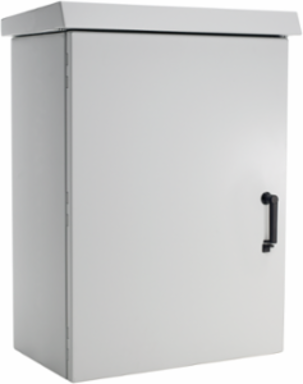

Light-weight outdoor wall-mount cabinet secures 19in rack-mount equipment in outdoor applications. This ComLine OSP Package Type 4X, ECL1207060PB item measures 1581x700x600mm with a material of Aluminum colored Lt Gray.
Features
- Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
- Foam-in-place gasket provides environmental seal
- Padlocking L-Handle provides a tight, secure door seal
- Doorstop holds door in place during service for easier and faster maintenance
- Heavy-duty hinged door is easily removed to facilitate equipment installation and removal; maximum door load 50 lb. (22.7 kg)
- Rack angles adjustable front-to-rear of cabinet
- Gland plates available with cutouts that fit HOFFMAN T15, T20 and CR23 air conditioners and HOFFMAN XR20 and XR29 heat exchangers (Indoor use only)
- Radius corners on cabinet eliminate sharp edges
- Stainless steel fasteners resist corrosion to maintain professional appearance
- Pole mounting kits available for all sizes
- Pad mounting plinth available for 600mm deep cabinets
- Battery compartment has front vented captivated door
- Rack angles have EIA universal standard square hole spacing
- Body includes studs for ground bar and rear mounting studs for wood panel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 700
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Door Thickness
- 2.5
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Weight
- 162
- Material
- Aluminum
- Color
- Lt Gray
Height (H)1,581
Depth (D)600
Product FamilyComLine
Body Thickness3
Rack Units25
IP RatingIP66
Sub BrandComLine
FinishLt Gray
