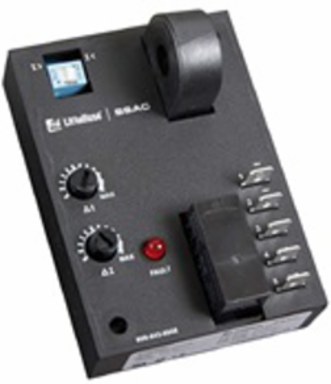

Littelfuse ECSH4HF.08D ECSH4HF.08D - ECS Series
- MPN: ECSH4HF.08D
- UPC: 079458992656
- PPN: LTF-ECSH4HF.08D
CAD
$260.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation Input voltage must be supplied at all times for proper operation. When a fault is sensed throughout the trip delay, the output relay is energized. When the current returns to the normal run condition or zero, the output and the delay are reset. If a fault is sensed and then corrected before the trip delay is completed, the relay will not energize and the trip delay is reset to zero.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 120VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Form | Isolated SPDT |
| Response Time (ms) | ≤75ms |
| Trip Delay Range | 0.08s fixed |
| Trip Delay vs Temperature | ±15% |
| Trip Point Hysteresis (%) | ±5% |
| Sensor Type | Toroidal Through-Hole Wiring |
| Sensor Tolerance | Guaranteed range |
| Sensor Frequency (Hz) | 45/500Hz |
| Isolation Voltage (V) | ≥2500V RMS input to output |
| Type of Detection | Peak detection |
| Termination Type | 0.25 in. (6.35mm) male quick connect terminals (5) |
| Operating Temperature | -40° to 60°C (-40°F to 140°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | ≅6.4oz (181g) |
| Input Tolerance (%) | -20--10% |
|---|---|
| Output Type | Electromechanical relay |
| Output Load Rating (VA) | 10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC |
| Trip Delay Type | Analog |
| Trip Delay Sensing on Startup (s) | Factory fixed 0-6s: +40% -0% |
| Trip Point Range | 5-50A adjustable |
| Trip Point vs Temperature | ≅±5% |
| Sensor Mode | Over or undercurrent switch selectable on the unit or factory fixed |
| Current Sensor Range | Maximum: Steady - 50A turns; Inrush - 300A turns for 10s |
| Insulation Resistance | ≥100 MΩ |
| Circuitry | Encapsulated |
| Life | Mechanical - 1 x 106; Electrical - 1 x 105 |
| Mounting Method | Surface mount with two #6 (M3.5 x 0.6) screws |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Dimensions | 3.50 x 2.50 x 1.75 in. (88.9 x 63.5 x 44.5 mm) |
