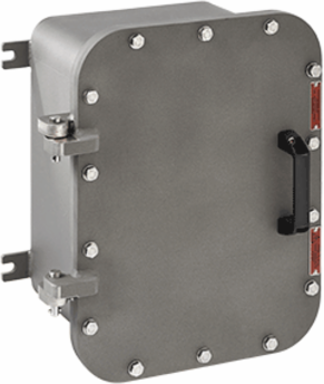

nVent Hoffman EJBX1 Stainless Steel Junction Box for Hazardous Locations, 7.91 Inch x 4.72 Inch x 6.39 Inch, IP66/67
- MPN: EJBX1
- UPC: 783510289751
- PPN: HOF-EJBX1
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EJBX series junction boxes are enclosures applicable for Zone 1, 2, 21 or 22 with ATEX and IECEx certifications. They are suitable for chemically corrosive and extreme environments. They can be used as junction boxes with or without terminals or for installation of electrical equipment such as circuit breakers, signals, disconnectors, remote control switches or transformers. Body and cover can be drilled and threaded according to customers’ specifications. In accordance with rules, Hoffman must perform the drilling.
Features
- AISI 316L stainless steel enclosure with stainless steel bolts and screws for superior corrosion resistance
- High temperature-resistant silicone gasket provides IP66 / 67 rating
- Welded mounting brackets for easy installation
- Internal mounting panel
- Body and cover can be drilled and threaded according to customers’ specifications
- Internal and external earth screws
Documentation & Downloads
Specifications
Key Specifications
- Model Code
- 28975
- Product Weight lbs.
- 75.38
- Catalog Number
- EJBX1
- B in.
- 8.35
- X in.
- 8.66
- Z in.
- 6.39
- Certifications
- II 2(1) GD Ex d [ia] IIB Ex tD A21 T5/T6 IP 65/66/67 || I M2 - Ex d I Mb || II 2GD Ex d IIB+H2 T6,T5, T4 Gb Ex tb IIIC T85°C, T100°C, T135°C Db || IP66/67 || II 2(1)GD Ex d [ia Ga] IIB+H2 T6, T5 Gb Ex tb [ia Da] IIIC T85°C, T100°C || Db IP66/67 || CESI 00 ATEX 036U (Component) || CESI 01 ATEX 026 (Terminal box) || CESI 01 ATEX 027 (Control, command and signaling units) || CESI 02 ATEX 073 (Interface units) || CESI 03 ATEX 015 (Unit with dischargers) || IECEx TSA 06.0011 - GOST R - BRAZILIAN || GOST-R, INMETRO, Australia certifications available
MaterialStainless Steel
Product Weight kg34.20
A in.12.28
C in.7.91
Y in.4.72
Industry StandardsATEX Directive 94/9/EC || EN 60079-0 || EN 60079-1 || EN 60079-11 || EN 60079-26 || EN 61241-0 || EN 61241-1 || EN 61241-11
