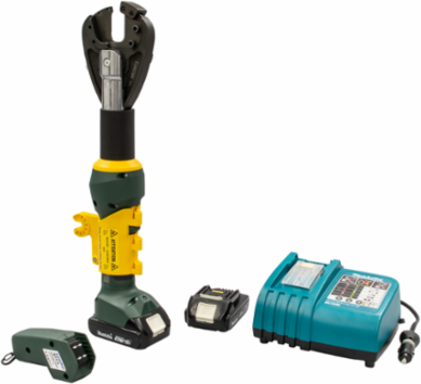

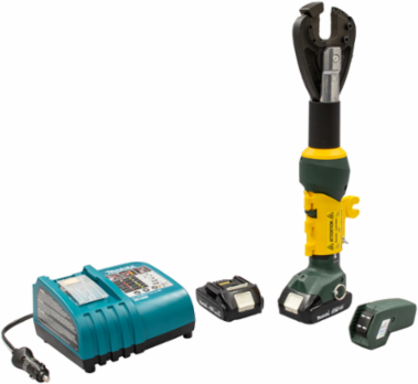

Greenlee EK425LXR12ACSR Hard Metal Remote Cutter, 6 Ton, 19 Inch Length, 18V Battery Powered
- MPN: EK425LXR12ACSR
- UPC: 783310215981
- PPN: GRN-EK425LXR12ACSR
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hard Metal Remote Cutter, 6 Ton, 19 Inch Length, 18V Battery Powered
Features
- Hot stick adaptor (BTC3-TJ) utilizes standard universal spline interface
- Universal remote control (BTC3GL) can be used with any Greenlee remote crimper/cutter
- Interchanable heads for a variety of crimping and cutting applications
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- Cutting head rotates 350 degrees
- Uses bio-degradable oil
Documentation & Downloads
Specifications
Key Specifications
| Width | 3 IN / 76.2 MM |
|---|---|
| Height | 4.75 IN / 120.65 MM |
| Min Operating Temperature | 1 F / -17.22222 C |
| Color | Green |
| Material | Steel |
| Light | LED |
| Handle Type | In-Line |
| Standard | IEC-62841-1 |
| Cutting Range | 477 kcmil Pelican ACSR, 5/16 EHS Guy Wire, 3/8 STD Guy Wire |
| Overall Length | 19 (483mm) |
| Finish | Black Oxide |
| Length | 19 IN / 482.6 MM |
|---|---|
| Weight | 6.2 LB / 2.81179 KG |
| Max Operating Temperature | 104 F / 40 C |
| Shape | In-line |
| Power | Battery Powered |
| Number of Handles | 0 |
| Sub Brand | Gator |
| Cutting Edge | Hard Metal |
| Jaw Size | 1.26 (32mm) |
| Jaw Material | Hardened Steel |
Regulations
| SDS Required | Yes |
|---|---|
| CA Prop 65 Reproductive Harm | No |
| REACH Compliant | Yes |
| CA Prop 65 Cancer | No |
|---|---|
| RoHS Regulations | No |
| CA SCAQMD | No |
Battery Information
| Included | Yes |
|---|---|
| Composition | Lithium Ion |
| Packaging | Batteres packed with equipment |
| Required | Yes |
|---|---|
| Life | 2 Ah |
| Advertised Voltage | 18V |
Motor Information
| Type | DC Brushed Permanent Magnet |
|---|
| Voltage | 18 VLT |
|---|
