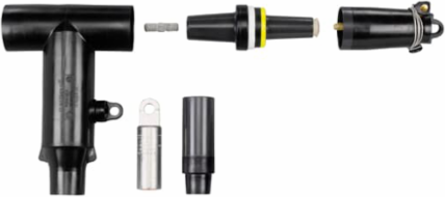

Thomas & Betts 656ETP-N0400-DRG ELBOW KIT,600A DB,15KV, WINDOW-OP
- MPN: 656ETP-N0400-DRG
- UPC: 783786443802
- PPN: T-B-656ETP-N0400-DRG
- UNSPSC: 39121421
CAD
$1186.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500.
Specifications
Additional Information
| Application | 600 Amps, 15kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 1.515 inch to 1.780 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20041206 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Capacitive Test Point, Insulated Cap |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
