Thomas & Betts K675LR-N-5410 ELBOW KIT,900A DB,15/25KV
- MPN: K675LR-N-5410
- UPC: 783786543571
- PPN: T-B-K675LR-N-5410
- UNSPSC: 39121421
CAD
$1530.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
Specifications
Additional Information
- Application
- Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
- Color
- Black
- Current Rating
- 900 A
- Includes

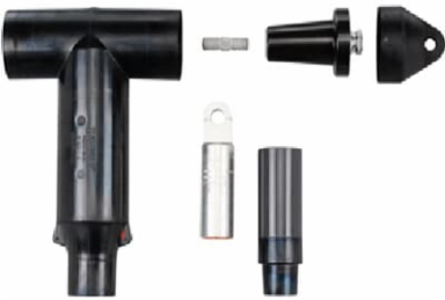

- 1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20070731
Insulation MaterialYes, EPDM Rubber
Product NameELBOW KIT CONNECTOR > 1000V
Size10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
