Federal Signal 141ST-012R Electraflash Strobe Light, UL and cUL, 12VDC, Red
- MPN: 141ST-012R
- UPC: 782979288107
- PPN: FDS-141ST-012R
- UNSPSC: 39111706
CAD
$389.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

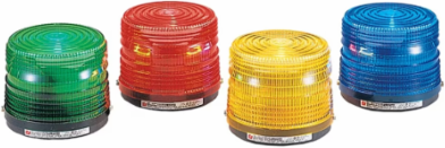

Federal Signal's Electraflash® 141ST is a strobe light designed for a variety of industrial uses. This compact warning light is less than six inches tall and six inches in diameter.Model 141ST includes a removable strobe mechanism. The 12 Vdc and 24 Vdc units have three holes for flat surface mounting. The 120 Vac version comes ready to mount on a 1/2-inch NPT pipe. Optional wall mounting brackets(Model LWMB2) or corner mounting brackets (Model LCMB2) are available for the 120 Vac units.Federal Signal's Electraflash strobe lights are designed for both indoor and outdoor industrial environments. The unit's convenient size and intense light output make it ideal for use on maintenance vehicles, forklifts, and other material handling equipment, effectively alerting hazardous conditions or dangerous areas.
Features
- Available in 12 Vdc, 24 Vdc, and 120 Vac
- Five lens colors: Amber, Blue, Clear, Green and Red
- 4,000-hour strobe tube
- Surface mount (12 Vdc and 24 Vdc) or integrated 1/2-inch NPT pipe (120 Vac)
- Indoor/outdoor use
- Conformal coated PCB
- Type 3R enclosure
- CSA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.8 lbs
- Candela Power Peak
- 100000
- Diameter
- 5.5 in (139.7 mm)
- Flashes Per Minute
- 80
- Lens Color
- Red
- Operating Current Amps
- 0.18
- Operating Voltage
- 12 Vdc
- Visual Signals Operating Voltage
- 12VDC
- Enclosure Rating
- Type 3R
- Product Life Cycle Status
- Completed
Height5.25 in
Body ColorBlack
Certification ListingCSA, UL, cUL
Flash Pattern Type1x Flash
AvailabilityShips in 10 Business Days
Mount Type1/2-Inch NPT Pipe, Surface
Operating Temp.-31˚ to +150˚F (-35˚ to +66˚C)
Visual Signals Lens ColorRed
Environmental RatingOrdinary Location
Lead TimeShips in 10 Business Days
