Federal Signal 225XST-012-024M Electraray Strobe Light, Hazardous Location, UL and cUL CID2, 12-24VDC, Magenta
- MPN: 225XST-012-024M
- UPC: 782979202448
- PPN: FDS-225XST-012-024M
- UNSPSC: 39111706
CAD
$1093.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

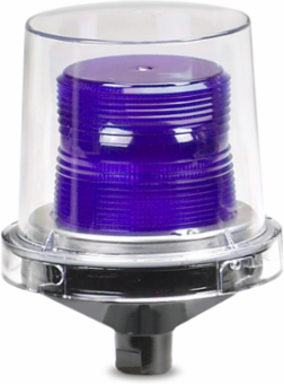

Model 225XST is a hazardous location light with a black e-coated coated base and the inner fresnel lens is available in six colors. The clear polycarbonate outer dome can be quickly removed for easy access to inspect the unit or change the lamp.Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries, or anywhere a visual signal is needed.
Features
- 12-24VDC, 120VAC, and 220-240VAC
- Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000 hour, high-intensity strobe tube
- 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure (Dome up orientation)
- IP69K compliant
- CSA Certified
- UL and cUL List for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- NSF certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Candela Power Peak
- 580000
- Diameter (in)
- 5.5
- Flash Pattern Type
- 1x Flash
- Availability
- Ships in 10 business days
- Mount Type
- 1/2-Inch NPT Pipe
- Operating Temp.
- -40˚ to +104˚F (-40˚ to +40˚C)
- Visual Signals Lens Color
- Magenta
- Depth
- 7.5 in, 19.05 cm
- Diameter
- 5.5 in, 13.97 cm
Weight1.5 lbs
Candela Effective Power240
Certification ListingCSA, UL, cUL, NSF
Diameter (mm)139.7
Flashes Per Minute80
Lens ColorMagenta
Operating Current Amps1.70-0.70
Operating Voltage12-24 Vdc
Visual Signals Operating Voltage12-24VDC
Height7.5 in, 19.05 cm
