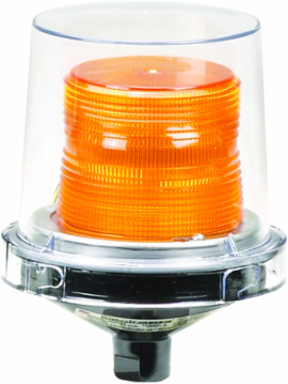

Federal Signal 225XST-240A Electraray Strobe Light, Hazardous Location, UL and cUL CID2, 240VAC, Amber
- MPN: 225XST-240A
- UPC: 782979390350
- PPN: FDS-225XST-240A
- UNSPSC: 39111706
CAD
$1097.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The model 225XST is a hazardous location light with a black e-coated base; the inner fresnel lens is available in six colors. The clear polycarbonate outer dome can be removed quickly for easy access to inspect the unit or change the lamp. The 24 Vdc 225XST-I features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a visual signal is needed.
Features
- 12-24 Vdc, 120 Vac, and 220-240 Vac
- Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000-hour, high-intensity strobe tube
- 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure (Dome up orientation)
- IP69K compliant
- CSA Certified
- UL and cUL List for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- NSF certified
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 1.5 lbs |
| Candela Effective Power | 240 |
| Certification Listing | CSA, UL, cUL, NSF |
| Flash Pattern Type | 1x Flash |
| Availability | Ships in 10 Business Days |
| Mount Type | 1/2-Inch NPT Pipe |
| Operating Temp. | -40˚ to +104˚F (-40˚ to +40˚C) |
| Visual Signals Lens Color | Amber |
| Environmental Rating | Hazardous Location |
| Lead Time | Ships in 10 Business Days |
| Height | 7.5 in |
|---|---|
| Body Color | Black |
| Candela Power Peak | 580000 |
| Diameter | 5.5 in (139.7 mm) |
| Flashes Per Minute | 80 |
| Lens Color | Amber |
| Operating Current Amps | 0.2 |
| Operating Voltage | 240 Vac |
| Visual Signals Operating Voltage | 240VAC |
| Enclosure Rating | IP66, IP69K, Type 4X |
| Product Life Cycle Status | Completed |
