Hubbell

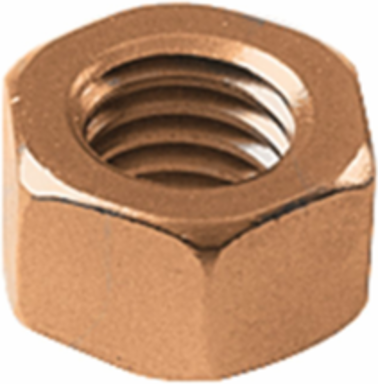

Hubbell 25CHENET Electro Tin Plated Silicon Bronze Nut 1/4-20, 0.25 Inch Size, 50 Pack

Electro Tin Plated Silicon Bronze Nut 1/4-20, 0.25 Inch Size, 50 Pack
  • MPN: 25CHENET
  • UPC: 781810120606
  • PPN: BUR-058042

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2.77/ EA

Description

Electro Tin Plated Silicon Bronze 1/4-20 Nut.

Features

  • Tin Plated DURIUM™ silicon bronze hardware combines high strength and corrosion resistance
  • Silicon bronze per ASTM B99

Specifications

Specifications

Country of Origin
US
Dimension - Bolt Size fraction
1/4
Dimension - Outside Diameter inch
0.44 in
Dimension - Threads per inch
20
Height
0.226 in
Length
0.438 in
Standards - RoHS Compliance Status
CM
Width
0.505 in
Certification Agency
Proposition 65
Freight Class Code
16027000
Image Actual Or Representative
A
Sub Class Code
B74BSGF
Material
SILICON BRONZE
BOX SIZE
3.250x2.440x2.940 (in)
Carton - Number of Sub Packs
50
Carton - SCC-14 Next Lower Level Sub Pack
00781810120606
Case - SCC-14 Next Lower Level Sub Pack
30781810120607
Package - Total Units
50 EA
Standard Package Quantity
50
Description - SlangElectro-Tin Plated
Dimension - Bolt Size inch0.25 in
Dimension - Thread Size1/4 - 20
Dimensions0.438 in x 0.505 in x 0.226 in
Installation Torque Recommended in-lb80 LBS/in
Product TypeNUTS
Trade NameDURIUM™
Connector TypeNut
Class CodeB74
Harmonization Code7415338010
Lead Time199 wk
UL ListedNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50
Package - GTIN - Package30781810120607
Package Quantity50 EA

Certifications

CSA Approved
No
ETL
No
cULusNo
UL RecognizedNo
