Klein Tools ESF150LL Electronic Stud Finder with Cross-Line Lasers
- MPN: ESF150LL
- UPC: 092644694783
- PPN: KLT-ESF150LL
- UNSPSC: 27111810
CAD
$93.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic Stud Finder with Cross-Line Lasers detects hidden wood and metal studs with an auto deep scan of up to 1-1/2-Inch. The horizontal and vertical lasers can be used together or independently. Offering mutable audible alerts and bright LEDs across the top, it clearly indicates the full width of the stud. It features an ergonomic handheld grip, hold mode and withstands a 6.6-Foot (2 m) drop. Felt pads protect walls during use and bubble vial assists with alignment. Laser Class 3R; ≤5mW.
Features

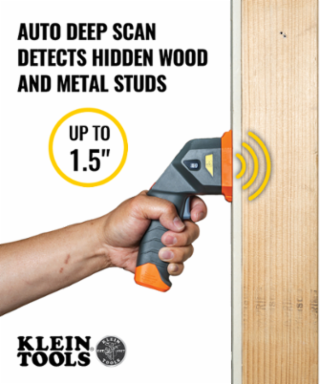

- Electronic Stud Finder with Cross-Line Lasers detects hidden wood and metal studs up to 1-1/2-Inch deep for accurate detection

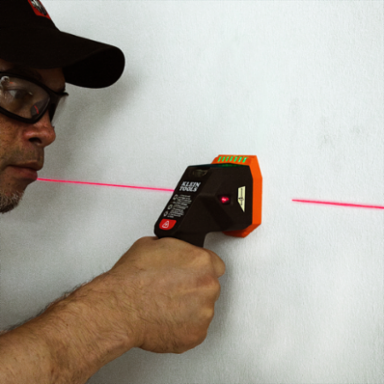

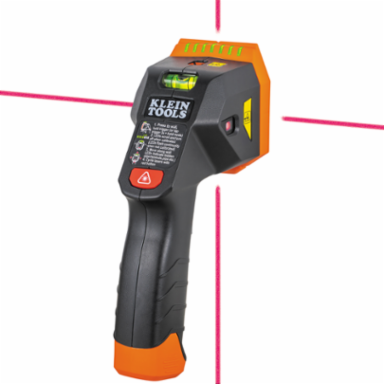

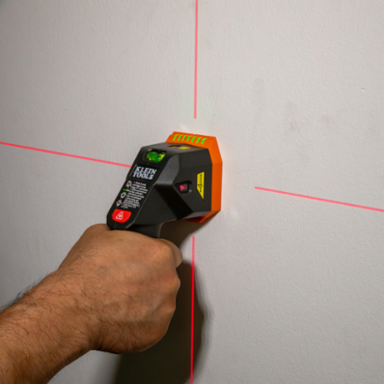

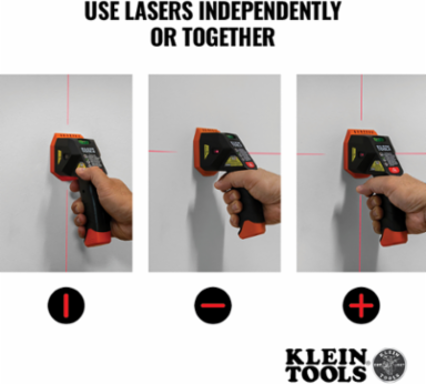

- Features horizontal and vertical cross-line lasers usable together or independently, simplifying marking tasks without the need for additional tools or adjustments when studs are located

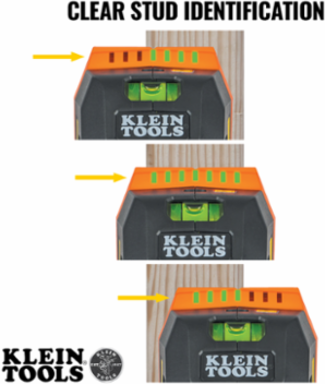

- Clear stud identification with bright LEDs spanning stud width and audible alerts with mute option

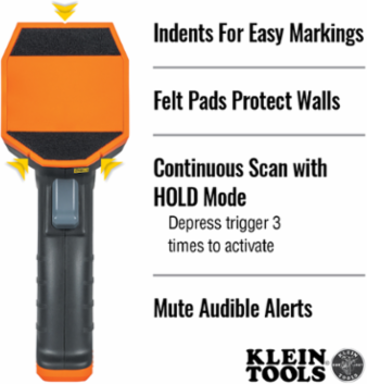

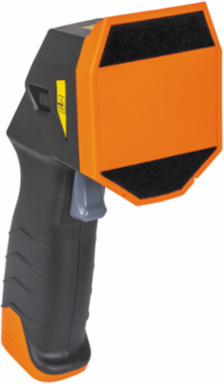

- Ergonomically designed with a handheld grip and felt pads protect walls during use, while the HOLD mode enables continuous scanning without trigger depression

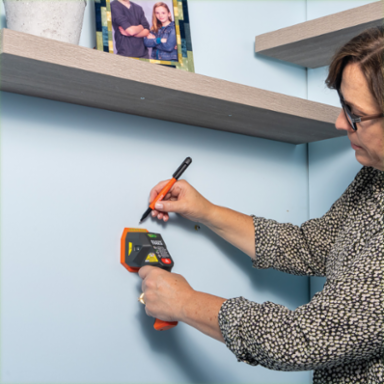

- Top and bottom center indentations allow for easy marking and identification

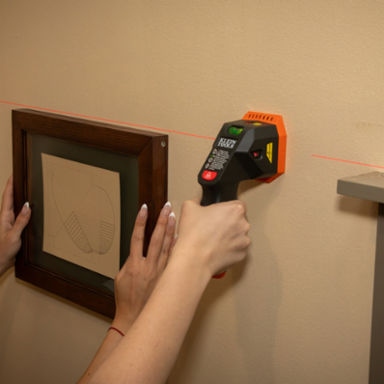

- An easy-to-read bubble level vial assists in quick alignment for picture hanging and other applications, allowing for one-handed operation
- Includes (2) AA batteries, designed to withstand 6.6-Foot (2 m) drops for durability
- Horizontal and Vertical Lasers; Felt Pads; Handheld Grip; Hold Mode; Mute Audible Tones
Documentation & Downloads
Specifications
Key Specifications
| Level Included | Cross-Line Laser Levels; Bubble-Level |
|---|---|
| Audible Alert | Yes |
| Batteries | (2) AA (1.5V) |
| Scan Depth | Up to 1.5" (3.8 cm) |
| Included | Stud Finder, 2x AA Batteries, Manual |
| Detects Metal | Yes |
| Display | (7) Bright Green LEDs |
| Battery Type | Alkaline |
| Drop Protection | 6.6' (2 m) |
| Laser mW | ≤5mW |
| Overall Length | 19.4 cm (7.63 Inch) |
| Overall Height | 4.5 Inch (11.4 cm) |
| Width | 4.5500 in |
| Weight | 0.5880 lbs |
| Magnetic | No |
|---|---|
| Detects Live Wires | No |
| Type | Electronic |
| Scans Material | Metal; Wood |
| Detects Voltage | No |
| Material | PC & PC-ABS Housing and Electronic Components |
| Application | Detect Metal And Wood Studs Behind Walls, Center and Edge-Finding, Laser Leveling |
| Laser Level Function | Red Horizontal and/or Vertical Lines; 15' in All Directions |
| Automatic Operation | No |
| Laser Class | Class 3R |
| Overall Width | 7 cm (2.75 Inch) |
| Height | 6.3800 in |
| Depth | 7.4500 in |
