PMA NVEZ-P090V Connectors-Straight
PMA NVEZ-P090V Connectors-Straight
- MPN: NVEZ-P090V
- UPC: 786209963529
- PPN: T-B-NVEZ-P090V
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.36/ EA
Description

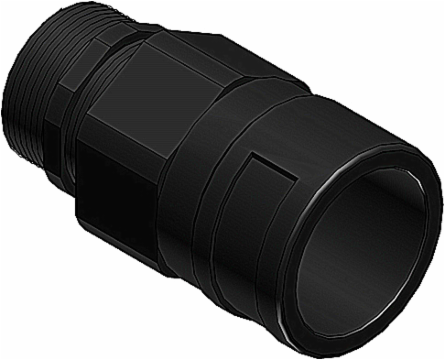

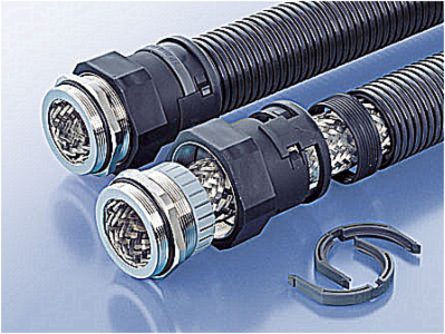

VEZ Connector with Strain Relief, PG Metal Thread - Thread 9, Fits to NW 10 F.CK 6/10/12 F.CU 10/12, Color Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- PG9
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter12mm
ModelStraight
Construction typeInternal thread
Thread typeOther
Thread materialBrass
Material sealingNo sealing
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x8.661
Outer Quantity500
Weight Uom0.08 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- PMA
- Application
- EMC Sensetive Applications in Railway
- Material
- Polyamide 6 with Nickel Plated Brass Threads
- Color
- Black
- Temperature Rating
- -40 Degrees C to 105 Degrees C; Short Term 160 Degrees C
IGCC4441 Electrical fittings
TypeConnectors-Straight
SizeNW10
Insulation ClassIP68
ConnectionPG09
