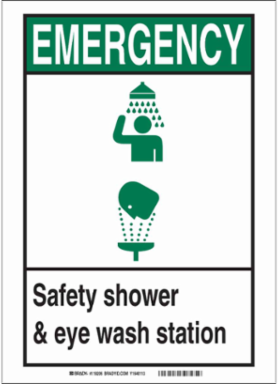

Brady 119205 EMERGENCY Safety Shower & Eye Wash Station Sign, 10" H x 7" W x 0.006" D, Polyester
- MPN: 119205
- UPC: 754473662585
- PPN: BRD-119205
- UNSPSC: 55121704
CAD
$14.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Black/Green/White
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Meets Industry Standards - Signs
- ANSI Z53.1-1967
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Write-On
- No
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Laminated
- Laminated
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.006 in
- Dimensions
- 10 in H x 7 in W x 0.006 in D
- Dimensions 2
- 10 in H x 7 in W
- Height (mm/cm/m)
- 254 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 10 in x 7 in
- Thickness (mm/cm/m)
- 0.254 mm
- Width (mm/cm/m)
- 17.78 cm
Calculated Sign ShapeVertical Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderEMERGENCY
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendSafety shower & eye wash station
Write-On AreaNo
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
MaterialPolyester with Polyester Overlaminate
SAP B-NumberB-302
Depth (mm/cm/m)0.15 mm
Dimensions (Metric)254 mm H x 0.15 mm D
Height (in/ft/yd)10 in
Maximum Service Temperature °C110 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Sign Size10 in H x 7 in W x 0.006 in D
Thickness (in/ft/yd)0.01 in
Width (in/ft/yd)7 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
