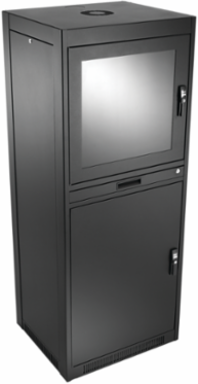

nVent Hoffman ENC1776PC Networking PC Cabinet Type 1, 1700x700x600mm, Black, Steel
- MPN: ENC1776PC
- UPC: 783510112233
- PPN: HOF-ENC1776PC
- UNSPSC: 43223306
CAD
$4271.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Networking PC Cabinets provide remote network access on factory floor protecting LAN/WAN equipment. This Networking PC Cabinet Type 1, ENC1776PC item measures 1700x700x600mm with a material of Steel colored Black.
Features
- Keylocking flush door handles on both upper and lower front doors
- Quarter-turn keylocks on rear door, side panels and keyboard door
- All locks keyed alike; two keys supplied with cabinet
- Front doors hinged on left; rear door can be hinged right or left
- Side panels easily removable
- Base is pre-punched for casters which are recessed when installed. Caster kit available as an accessory
- Adjustable gland plate with strain relief at bottom rear of cabinet provides easy, secure cable entry
- Welded steel frame with accessory mounting struts
- Steel keyboard with ball-bearing pull-out slides and keylock
- Clear safety-glass window in upper front door
- Louvers on lower quarter of rear door
- Top has one 4-inch cable entry port knockout with cap included and one 6-inch fan-ready cutout with integral finger guard
- Doors and side panels inset flush with frame
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 700
- Protection Rating
- NEMA Type 1
- Thickness (T)
- 1.52
- Height
- 66.93 in
- Depth
- 23.62 in
- Finish
- Alum/Black
- NEMA Rating
- 1 Indoor, electrical protection
Height (H)1,700
Depth (D)600
Color CodeRAL 9005
Weight245
Width27.56 in
MaterialSteel
ColorBlack
