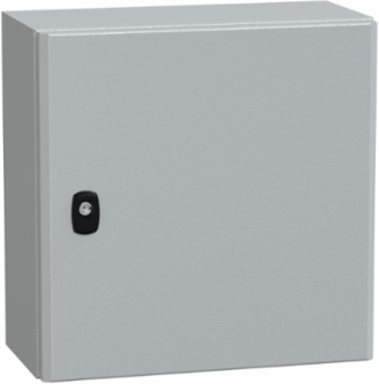

Schneider Electric NSYS3DEX4420 Spacial S3DEX Compact Enclosure 400x400x200 mm, IP66, IK10, ATEX Certified
Schneider Electric NSYS3DEX4420 Spacial S3DEX Compact Enclosure 400x400x200 mm, IP66, IK10, ATEX Certified
- MPN: NSYS3DEX4420
- PPN: SCH-NSYS3DEX4420
- UNSPSC: 39121323
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$257.91/ EA
Description
Spacial S3DEX (ATEX certified) compact enclosure. H is400xW is400xD is200 mm. For potential explosive atmosphere. No mounting plate or cable gland included. 1 front face/door. Wall mounting installation. Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Marking is II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 400 mm
Enclosure Nominal Height400 mm
Conformance Attributes
- Standards
- EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 1 lock, body with clamped blind nut
- Carbon Footprint Of The Distribution Phase A4
- 13.627254900322418, 14 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.3523249958082648, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Door Opening Side
- reversible 120 °)
- Installation Accessory Type
- wall-mounting
- Material
- steel
- Package Weight Lbs
- 6.864 kg
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hinges
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 65 kg CO2 eq.
- Pep Code
- ENVPEP1001004EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Unit
- Unit
- Product Manager
- JULES BARBALONGA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Variant Particularitygutter-shaped front rail double sheet thickness, single piece body
Carbon Footprint Of The End Of Life Phase C1 To C416 kg CO2 eq., 16.170582897697447
Carbon Footprint Of The Manufacturing Phase A1 To A334 kg CO2 eq., 33.51414620815284
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Energy Efficiency OptimizedFalse
MarkingII 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
Number Of Doorsfront face 1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Pep Verification Date2024-10-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 64.66430900198097
- IP Degree Of Protection
- IP66 IEC 60529 enclosures with single door)
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- PSR Version
- PSR-0005-ed3.1-EN-2023 12 08
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
PCR VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
