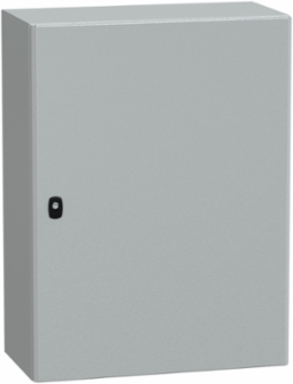

Schneider Electric NSYS3DEX8630 Spacial S3DEX Compact Enclosure 800mm x 600mm x 300mm, ATEX Certified, IP66, IK10
Schneider Electric NSYS3DEX8630 Spacial S3DEX Compact Enclosure 800mm x 600mm x 300mm, ATEX Certified, IP66, IK10
- MPN: NSYS3DEX8630
- PPN: SCH-NSYS3DEX8630
- UNSPSC: 39121323
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$530.91/ EA
Description
Designed for demanding environments, the Spacial S3DEX enclosure from Schneider Electric is ATEX certified, ensuring it meets the stringent requirements for use in potentially explosive atmospheres. With a robust construction of steel and a sleek gray finish (RAL 7035), this compact enclosure offers exceptional durability with an IK10 impact protection rating and IP66 ingress protection, making it suitable for both indoor and outdoor applications. Its thoughtful design includes a solid door with a three-point locking mechanism for enhanced security, and the enclosure is wall-mountable for convenient installation. Weighing 25.5 kg, this unit is not only practical but also engineered to withstand the rigors of industrial use while adhering to essential safety standards.
Features
- Wall-mounting steel enclosure designed for potentially explosive atmospheres.

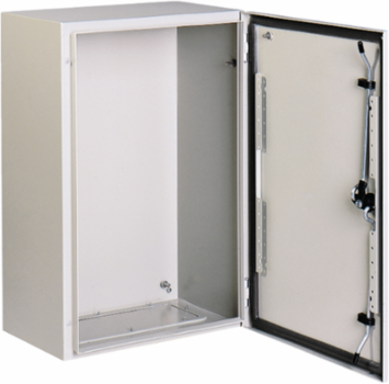

- Reversible plain door with a 3-point lock and 3mm double-bar for security.
- Front accessibility for convenient operation.
- Epoxy-polyester powder surface finish for added durability and resistance.
- Single-piece body and gutter-shaped front rail double-sheet thickness.
- Easy maintenance with a removable door.
- Opening up to 120° for better access.
- Suitable for use in hazardous environments per ATEX directive 94/9/EC.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height800 mm
Conformance Attributes
- Standards
- EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 1 lock, body with clamped blind nut
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 51 kg CO2 eq., 50.88644967806889
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 105 kg CO2 eq., 105.46409645922222
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- ATEX certified application
- Door Type
- Solid
- Lock Type
- 3 points lock, 3 mm double-bar
- Material
- steel
- Number Of Doors
- front face 1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hinges
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 203 kg CO2 eq.
- Medium Desc
- Spacial S3DEX (ATEX certified) H800xW600xD300 .IP66 IK10 RAL7035.
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A442.882969966049565, 43 kg CO2 eq.
Carbon Footprint Of The Installation Phase A54.2555681686274065, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
MarkingII 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
Mounting Plate Descriptionwithout mounting plate
Package Weight Lbs21.6 kg
Product Destinationfor potentially explosive atmosphere
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Stocking FlagY
Pep CodeENVPEP1001004EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Product NamePanelSeT S3DEX
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 203.48908427196807
- IP Degree Of Protection
- IP66 IEC 60529 enclosures with single door)
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1001004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Nema Degree Of ProtectionNEMA 4X/13
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
