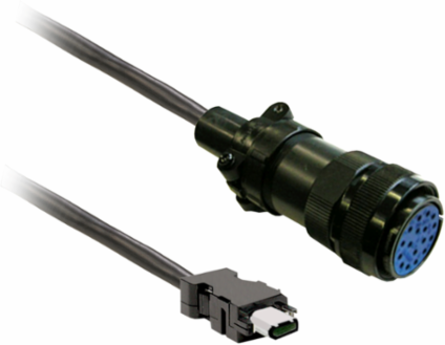

Schneider Electric VW3M8D2AR30 3 Meter Shielded Encoder Cable with MIL Connector for Lexium 28
- MPN: VW3M8D2AR30
- PPN: SCH-VW3M8D2AR30
CAD
$269.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precision in automation and control applications, this shielded encoder cable from Schneider Electric is designed specifically for use with the Lexium 28 series. Featuring a reliable MIL connector, the 3-meter cable ensures secure connections that mitigate interference and enhance signal integrity, essential for optimal performance in demanding environments. Ideal for those looking to streamline their control systems, this encoder cable is a vital accessory that enhances the robustness and reliability of motor and drive operations.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Switzerland, France, Sweden, Tunisia |
|---|
Physical Attributes
| Cable Length | 3 m |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Application | for BCH2 with SinCos single turn encoder |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | from servo motor to servo drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Cable Composition | 5 x (2 x 0.13 mm²) |
| Electrical Connection | 1 connector Firewire 61 connector MIL 17 |
| Product Or Component Type | encoder cable |
| Returnability | No |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | encoder cable |
| Package Weight(Lbs) | 241 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | encoder cable |
|---|
| Range Of Product | Lexium |
|---|
ETIM
| ETIM 8 | EC000237 |
|---|
| ETIM 9 | EC000237 |
|---|
