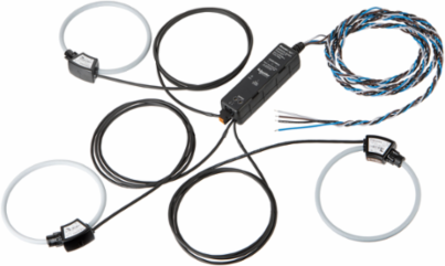

Schneider Electric METSEEM4236A12 Enercept Meter, 12 Inch Rogowski, 50-5000 A, Modbus/BACnet
- MPN: METSEEM4236A12
- PPN: SCH-METSEEM4236A12
- UNSPSC: 83101808
CAD
$1169.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. This bundle ships with 3, 12 inch Rogowski current transformers rated up to 5,000 A. Accuracy calibrated at 1%. ANSI version, fuse packs factory mounted. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.
Features
- Wide range of service types compatible
- Modbus and BACnet protocols sets in one unit
- Flexibility for retrofit applications
- DIN rail or screw mount options
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 35.81 mm |
| Weight | 1409.09 g |
|---|
Communications & Management Attributes
| Communication Of Data | remote control orders, total energy, net energy |
|---|
| Communication Port Protocol | Modbus RTU 9600 bauds...115200 bauds (automatic detection), BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) |
|---|
Physical Attributes
| Wire Stripping Length | 6 mm |
|---|
Important Information Attributes
| Electromagnetic Compatibility | immunity to radiated fields conforming to EN 61326-1, conducted and radiated emissions conforming to FCC Part 15 class A, conducted and radiated emissions conforming to EN 61000-6-4, conducted and radiated emissions conforming to EN 61326 + A1immunity to conducted disturbances conforming to EN 61000-6-2, immunity to conducted disturbances conforming to EN 61326-1, immunity to radiated fields conforming to EN 61000-6-2 |
|---|---|
| Local Signalling | status LED green and red), line fault 3 LED green, orange and red)dial pointer indication LED Yellow)RX/TX 2 LED green, orange and red) |
| Metering Type | active, reactive, apparent energy (signed, four quadrant), apparent power S, S1, S2, S3, demand power P, Q, S, active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, power factor, average current Iavg, peak demand power PM, QM, SM, frequency, voltage U21, U32, U13, V1, V2, V3 |
| Mounting Support | enclosure, DIN rail |
| Provided Equipment | bracket for support, hook, Rogowski coil 3 12 in, fuse |
| Certificate Agency | CE conforming to EN 61010-1cULus conforming to UL 61010-1, BTL, IEC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 2.0161844847648314 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 38 kg CO2 eq., 38.40741506477476 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2506060EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2036 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Short Name | Enercept |
| Energy Efficiency Optimized | False |
| Frequency Measurement Range | 45-65 Hz |
| Measurement Current | 50-5000 A |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | energy meter |
| Returnability | Yes |
| Sustainable Packaging | No |
| Type Of Cable | ANSI cable |
| Data Source | extrapolated product |
| Width Nominal | 46.63 mm |
| Customs Code | 9028300000 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional Unit Unit | unit |
| Function Available | external synchronisation to communication, fixed or rolling block |
|---|---|
| Measurement Category | category III 277-277 V, category III 300-300 V |
| Mounting Mode | by screws, clip-on, by hook |
| Network Frequency | 50 Hz, 60 Hz |
| Connections Terminals | input/output plug-in connector bottom) 0.2-1.5 mm², current transformer plug-in connector bottom) 0.2-1.5 mm², communication plug-in connector bottom) 0.2-1.5 mm² |
| Carbon Footprint Of The Distribution Phase A4 | 0.40720952696369933, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.029608367184446163, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 57 kg CO2 eq., 57.29884402739639 |
| Local Publishable Date | 2025-07-10 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Application | power monitoring |
| Display Type | Without Display |
| Form Factor | system calibrated |
| Measurement Accuracy | 1 % |
| Measurement Voltage | 90-90 V AC 45...65 Hz minimum per phase480-480 V AC 45...65 Hz between phases300-300 V AC 45...65 Hz between phase and neutral |
| Product Name | PowerLogic EM4200 |
| Range | PowerLogic |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 98 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 152.36 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Operating Altitude | < 9842.52 ft (3000 m), < 9842.52 ft (3000 m) |
| Reach Free Shvc | Yes |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -15-60 °C-15-60 °C |
| Environmental Disclosure | ENVPEP2506060EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2506060EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 98.15926147108414 |
| Circularity Profile | ENVEOLI2506060EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 0-95 % |
| Pep Verification Date | 2025-10-29 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Provided Equipment | bracket for support, hook, Rogowski coil 3 12 in, fuse |
|---|
| Product Or Component Type | energy meter |
|---|
ETIM
| ETIM 8 | EC001506 |
|---|---|
| ETIM 10 | EC001506 |
| ETIM 9 | EC001506 |
|---|
Output Attributes
| Number Of Outputs | 0 |
|---|
Input Attributes
| Analogue Input Type | Rogowski coil 0.333 V (impedance 33 kOhm), voltage (impedance 2.5 MOhm)single phasevoltage (impedance 5 MOhm)phase to phase |
|---|
| Number Of Inputs | 0 |
|---|
