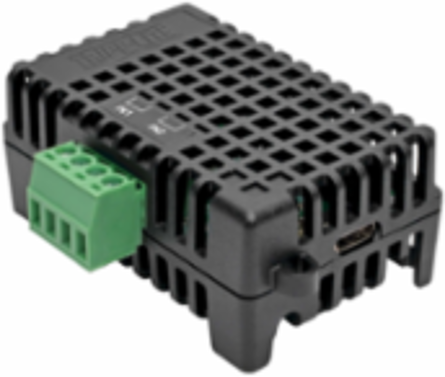

Tripp Lite E2MTHDI EnviroSense2 (E2) Environmental Sensor Module with Temperature, Humidity and Digital Inputs
Tripp Lite E2MTHDI EnviroSense2 (E2) Environmental Sensor Module with Temperature, Humidity and Digital Inputs
- MPN: E2MTHDI
- UPC: 037332181305
- PPN: TRP-E2MTHDI
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$386.23/ EA
Description
EnviroSense2 (E2) Environmental Sensor Module with Temperature, Humidity and Digital Inputs
Features
- Adds environmental monitoring to Tripp Lite UPS systems and PDUs with LX Platform interface
- Monitors temperature and humidity to help IT personnel maintain ideal operating conditions
- Monitors up to two dry contact devices for safety and security in IT racks

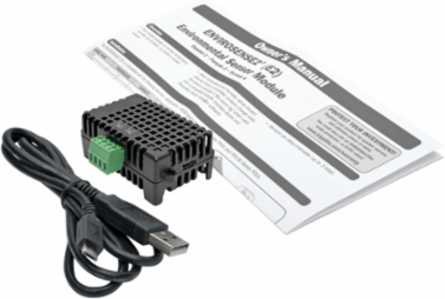

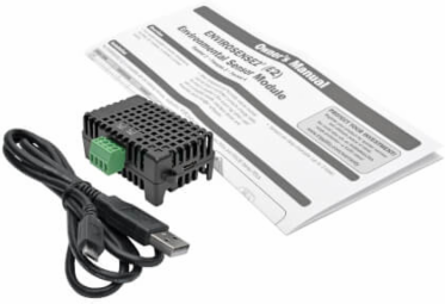

- Includes USB-A to USB Micro-B cable for easy connection to UPS or PDU
- Mounts magnetically - no hardware required
- 2-year limited warranty
- Add Remote Monitoring of Environmental Conditions to Your LX Platform Device
- Know If Conditions Become Too Hot or Humid for Your Equipment
- Remotely Monitor Dry Contact Connections to Avoid Surprises
- Take Advantage of Convenient Installation Features and Daisy-Chain Capability
- Comply with TAA Requirements
- 2-Year Warranty
Specifications
Connections
- Side A - Connector 1

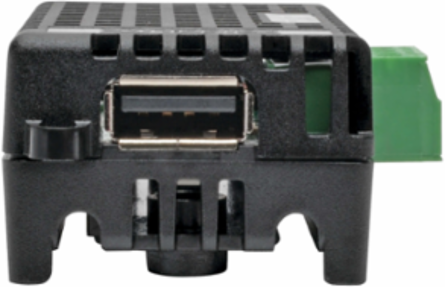

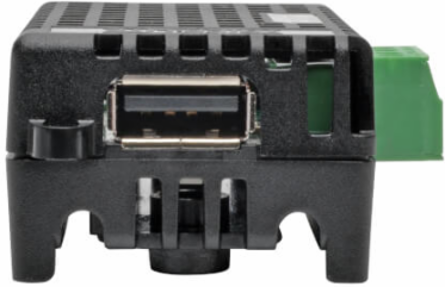

- USB A (FEMALE)

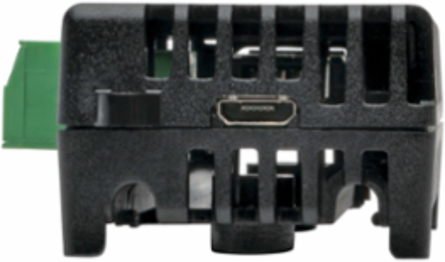

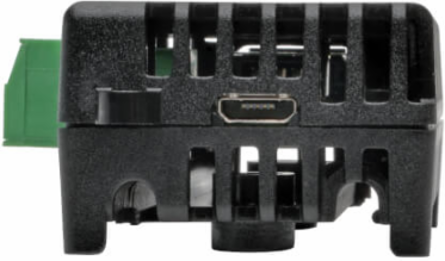

Side B - Connector 1MICRO-USB B (FEMALE)
Physical
- Shipping Dimensions (hwd / in.)
- 1.10 x 4.30 x 5.90
Shipping Weight (lbs.)0.29
Input
- Cable Length (ft.)
- 3
Communications
- Communications Cable
- 1m (3.28ft.) USB A/micro-B
- Systems & Sensors Information

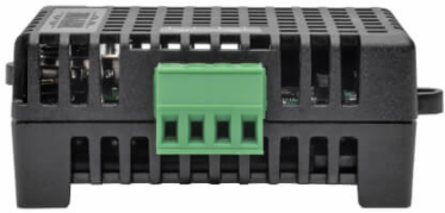

- Dry contact terminals are polarity marked for compatible contact accessories. Terminal connector supports wire gauges of 14-28 AWG; 6-7mm wire strip length; M2 screws with 3.0Lb-In / 0.34Nm torque specification
Input Dry Contact PortsTwo dry contact terminal connections per E2MTHDI module
Overview
- UPC Code
- 037332181305
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
