Burndy BCSE1571800 EPDM Cold Applied Shrink Sleeve, 1000V, -55 to 155 C Temperature Range

MPN: BCSE1571800
UPC: 621945706606
PPN: BUR-50142127
UNSPSC: 39121728

$101.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

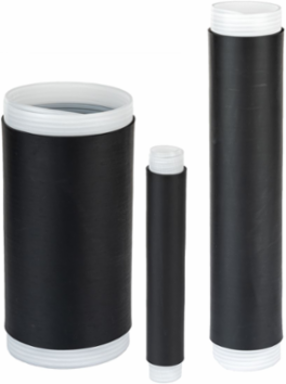

Black cold applied shrink sleeve, made of EPDM (Ethylene Propylene Diene Monomer) rubber. Offering excellent insulation and moisture-resistant sealing for inline cable connector systems. The sleeves come expanded over a removeable plastic ripcord housing for quick and easy installation. Operating temperature range: -55°C to 155° C. Meets ANSI C119.1-1986

Features

Length of tube remains consistent before and after application
Easy, safe installation
Suitable for wide range of cable sizes
UV resistance, thermal stability
No special tools or training required for installation
Forms a moisture resistant seal
Indoor and outdoor applications
Rip and grip! No heat gun or installation tools required
Ripcord is recyclable

Specifications

Key Specifications

Country of Origin	China
Operating Temperature Range Celcius	-55°C to 155°C
Voltage Rating	1000 V
Freight Class Code	16027000
Image Actual Or Representative	A
Material	EPDM Rubber
BOX SIZE	20.000x19.750x16.250 (in)
Carton - Number of Sub Packs	75
Carton - SCC-14 Next Lower Level Sub Pack	00621945706606
Case - SCC-14 Next Lower Level Sub Pack	30621945706607
Package Quantity	1 EA
Pallet - GTIN - Package	70621945706605
Pallet Length	48.000 in
Pallet Width	40.000 in

Width	2.000 in
Color	Black
Class Code	B75
Harmonization Code	4016996050
Sub Class Code	B75B003
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	75
Package - GTIN - Package	30621945706607
Package Weight	0.000 lb.
Pallet Height	44.500 in
Pallet Weight	386.760 lb.
