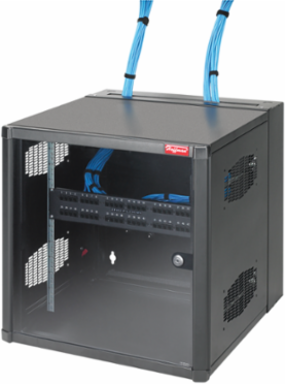

nVent Hoffman EWMWG242825 AccessPlus Double-Hinge Window Gland, 23.6 Inch x 28.31 Inch x 25.1 Inch, Black Steel, NEMA Type 1

Description

Features

• Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
• Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
• Center section easily removed from rear section; tool-less one person installation possible
• Self-grounding, plated steel rack angles fully adjustable within center section
• Wall section provides cable entry and cable management with knockouts or gland plates
• Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
• Self-locking center-to-wall section latches in two locations
• Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
• Vented sides provide cross flow ventilation to improve heat dissipation
• Vertical cable manager included in 28-in.-wide models
• One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
