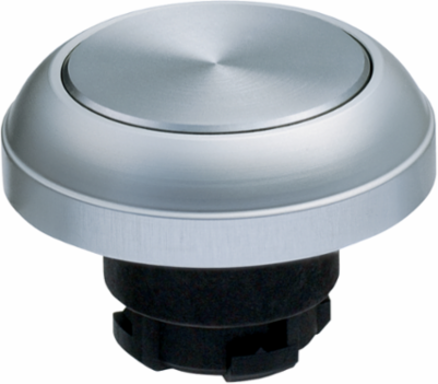

Schmersal 101197340 EX-RDTWS Push Button with 22.3 mm Mounting Diameter, Ex-Zone 1 & 21
- MPN: 101197340
- PPN: SCM-101197340
CAD
$151.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EX-RDTWS Push Button with 22.3 mm Mounting Diameter, Ex-Zone 1 & 21
Features
- Ex-Zone 1 and 21
- Push button
Documentation & Downloads
Specifications
Key Specifications
- Height
- 11 mm
Explosion protection
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
- Explosion protection category
- 2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

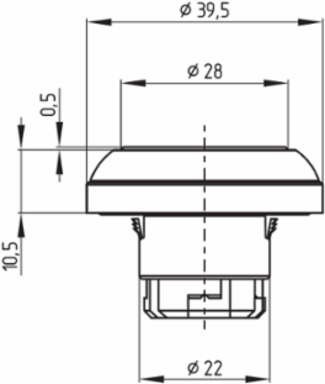

Mechanical data - Dimensions
- Height
- 11 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
Height of touch surface0.5 mm
Thickness, of the front panel, minimum1 mm
Safety classification - Safety outputs
- B
- 100,000 Operations
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
- Material of the identification label
- Stainless steel (V4A)
- Colour of the operating element
- White
- Gross weight
- 67 g
DesignRound
Material of the front ringAluminium
Colour of the front ringSilver
Safety classification
- Mission time
- 20 Year(s)
Ambient conditions
- Restistance to shock
- 50 g
Mechanical data
- Actuating stroke
- 4 mm
Actuating force, approx.1.5 N
Approvals - Standards
- Certificates
- TÜV | IEC Ex
