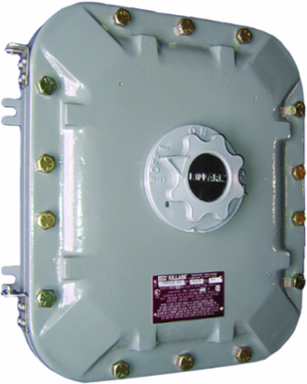

Killark EXB-FDS-1003P Aluminum Fused Disconnect Switch 100A 3-Pole 2 Inch Conduit
Killark EXB-FDS-1003P Aluminum Fused Disconnect Switch 100A 3-Pole 2 Inch Conduit
- MPN: EXB-FDS-1003P
- UPC: 783936012162
- PPN: HBL-EXB-FDS-1003P
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
EXB-FDS Series - Aluminum Fused Disconnect Switch - Switch Rating 100 -3-Pole - Top Conduit 2 Inch - Bottom Conduit 1/2 Inch - Wire Size#14-2/0
Features
- Copper-free aluminum construction, high strength, lighter in weight and corrosion resistant.
- Fewer cover bolts (no corner bolts required) reduces installation and maintenance time.
- Cover bolts are stainless steel.
- Gasketed flange with O-ring located inside the bolt circle to seal out moisture.
- Stainless steel hinges are standard.
- Switch operating handle of copper-free aluminum can be padlocked, with up to three locks, in either the "ON" or "OFF" position.
- Ductile mounting lugs adjust to irregular mounting surfaces.
- Bodies have top and bottom drilled and taped conduit entrances for power and drain/breather.
- Global applications (ATEX) Enclosures are available for global applications with "CEN" suffix.
- Assembilies that are modified to CENELeC/ATEX standards maintain their North American certifications.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Primary Voltage
- 600 VAC
- Actuator
- Handle
- Enclosure
- Bolted
- Height
- 22.375 in
- Number of Poles
- 3
- Type
- Aluminum Fused Disconnect Switch
- Weight
- 130 lb.
- Enclosure Type
- Bolted
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- Number Of Wires
- 4
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83969 / E12379
- Series
- EXB-FDS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936012162
Depth14.9375 in
Operating Temperature Celcius Max40 Degree
Size12" x 18" x 8"
ApplicationEXB-NFD Series hinged cover disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;or in areas where frequent washdowns, heavy rain, or water spray routinely occurs.
Frequency Rating60 Hz
MountingWall
Special FeaturesSuitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Width16.375 in
Amperage Rating100 A
Mounting TypeWall
Number Of Poles3
ARRA CompliantContact Manufacturer
Description - InvoiceEXB FUSED DISCONNECT
Harmonization Code8536509025
Lead Time25 wk
Order Multiple1 EA
Sub Class CodeD25D251
Gross Weight with Packaging130
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
