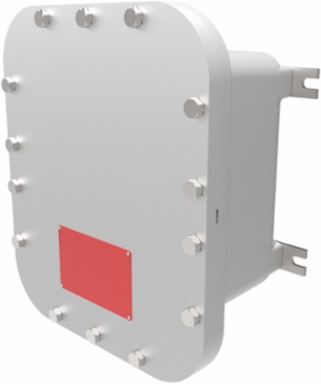

Killark EXBLTP-6126 N4 Junction Box, 6 x 12 x 6 Inch, Aluminum, Class I, II, III, Type 4
Killark EXBLTP-6126 N4 Junction Box, 6 x 12 x 6 Inch, Aluminum, Class I, II, III, Type 4
- MPN: EXBLTP-6126 N4
- UPC: 783936157863
- PPN: HBL-EXBLTP-6126 N4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4007.20/ EA
Description
EXBLTP Series, 6 X 12 X 6, Class I, II, III, BCDEFG, Cast Aluminum box, Aluminum plate cover,Type 4, Bolted Enclosure
Features
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Reduced number of cover bolts.
- Cover “O”-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4 rating.

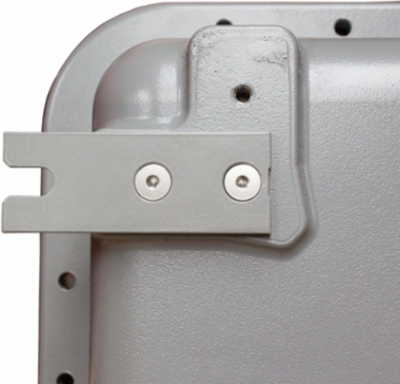

- Mounting lugs are bi-directional, bolt on, made from ductile aluminum alloy.
- Back pan mounting holes predrilled.
- Conduit and device openings factory or field installed.
- Aluminum hinges and stainless steel hardware standard on mid to large size boxes.
- Recessed flange notches to allow for easier cover opening.
- The EXBLT series bolted enclosures are for use in locations that are hazardous and corrosive, wet or hose down rated, dusty or dirty, under either severe hot or cold ambient conditions. The EXBLT series is UL / CSA certified for Class I Groups BCD, Class I Zone 1 & 2 IIB+H2, Class II Groups EFG, Class III, Type 4 & 4X. The EXBLTs boxes are made of cast copper-free aluminum, less than 4/10 of 1% copper content. The EXBLTs covers are made from 6061-T6 aluminum plate, also containing less than 4/10 of 1% copper content. The enclosures are supplied standard with a Nitrile (BUNA-N) O-Ring and ductile mounting lugs. The boxes have pre-drilled internal mounting bosses for factory or field installed mounting pans. Options include viewing windows, control operators, rotary handles, circuit breaker handles, NPT conduit openings & metric gland openings.
Specifications
Specifications
- Country of Origin
- Canada
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Engineering Drawing 1 Display Text
- EXBLTP-6126 N4 Engineering Drawing
- Nema Rating
- 3, 4, 4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- EXB LITE 6X12X6 WITH PLATE COVER
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Sub Class Code
- D25D252
- UL File Number
- E10514 / E83696 / E12379
- Series
- EXBLT Seires
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936157863
ColorGray
Size6" x 12" x 6"
Cover TypeBolted
TypeJunction Box
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeR
Order Multiple1 EA
CSA File NumberLR11716
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
