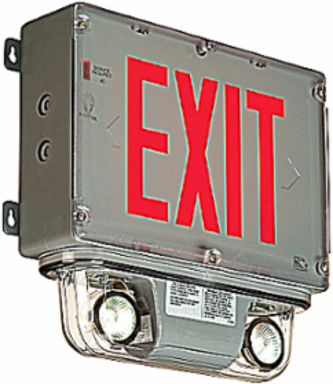

Lumacell 5LERHZ2LD9GGZCAT Exit Combo Signs
- MPN: 5LERHZ2LD9GGZCAT
- UPC: 624616324871
- PPN: T-B-5LERHZ2LD9GGZCAT
CAD
$2672.75
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Exit Combination Unit, 120/277VAC, auto-diagnostics, audible, Battery Type: nickel-cadmium, Battery Wattage: 60W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 5W, Housing Colour: grey, Faceplate Colour: grey, Legend Colour: red, Voltage DC: 12V, Head Style: shielded, Battery Run Time: 30 minutes
Features
- Suited for areas with the risk flammable gases, vapors or liquids that can create an explosive atmosphere
- Long-life, ALINGAP technology energy-efficient LED light source is warrantied for 10 years
- Remote load capacity: covers with LED lights 200 ft up to 800 ft of egress illumination
- Comes standard with self-test/self-diagnostic functions
- Comes standard with industrial-grade, Die-Cast Aluminum electrical box
- 1/2 inch electrical conduit entry on both sides and at the top
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39111709 Emergency light unit |
|---|---|
| Brand Name | Lumacell |
| Application | Institutional, Industrial |
| Wattage | 60W |
| Battery | Nickel-cadmium |
| Lamp Type | MR16 LED |
| Size | 12-5/8 Inches Height x 14-1/2 Inches Width |
| Color | Grey |
| IGCC | 3941 Explosion proof emergency and security luminaire |
|---|---|
| Type | Exit Combo Signs |
| Standard | CSA |
| Voltage Rating | 120/347VAC |
| Battery Runtime | 30 minutes |
| Number Of Lamps | 2 |
| Material | Frame: Polymer, Faceplate: Polycarbonate |
| Lamp Wattage | 5W |
European Specifications (ETIM)
| ETIM | EC000981 Explosion proof emergency and security luminaire |
|---|---|
| Suitable for number of lamps | 2 |
| With lamp | Y |
| Nominal voltage | 120-277V |
| Material housing | Other |
| Lamp power | 5W |
|---|---|
| Lamp type | LED exchangeable |
| Mounting method | Surface mounting |
| Automatic self test | Y |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 14 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
