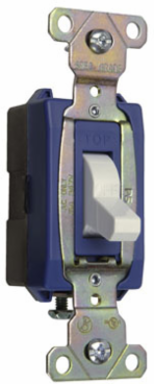

Pass & Seymour PS371510W Extra Heavy Duty 1-Pole Toggle Switch 15A 347V, White
- MPN: PS371510W
- UPC: 785007196023
- PPN: P-S-PS371510W
CAD
$33.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra Heavy Duty 1-Pole Toggle Switch 15A 347V, White
Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast ''make'' and positive ''break'' to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.073 in
- Height
- 3.281 in
- Width
- 1.32 in
- Country of Origin
- Mexico
- Type
- Switch
- Load Type
- LED
- Amperage
- 15.0 A
- Voltage
- 347 VAC
- Number of Gangs
- 1
- Load Type
- Universal
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Wall Plate Included
- No
- Requires Neutral Wire
- No
- Features
- Chemical Resistant
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- High strength toggle, heavy duty toggle bumpers, locking support
ColorWhite
FinishMatte
MaterialThermoplastic
Product LinePass & Seymour
Load TypeCFL
StandardUL 20
Load TypeXenon
Load TypeHalogen
Switch TypeToggle
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches1.0
Throw TypeSingle Throw
Load Rating15 A @ 347 VAC
Number of PolesSingle Pole
Application SectorIndustrial
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
