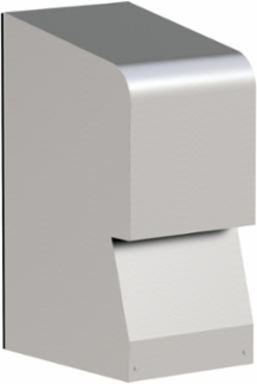

nVent Hoffman X230226G170 Extreme Environments Air Conditioner 22.29x10.23x13.64 Inch 1890BTU 230V SS304
- MPN: X230226G170
- UPC: 783510571023
- PPN: HOF-X230226G170
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Compact Extreme Environments AC with efficient compressor utilizing advanced corrosion protection. This Extreme Envrs Air Conditioner, X230226G170 item measures 22.29x10.23x13.64in a material SS304, capacity 1890BTU 230V.
Features
- Energy-efficient rotary compressor
- R513A or R134a refrigerant
- Reliable Smart Controller on enclosure side of the unit
- 10-degree sloped top shroud, welded and ground
- Sloped internal surfaces reduce catchpoints for water, dust, bacteria build-up
- FDA-approved neoprene gasket
- No louvers on vertical surfaces allow washdown with minimal protections
- Cutout Adapter options for enclosures with older nVent HOFFMAN or Competitive units for easy transitions to new air conditioners
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- UL Listed to save customers time and money with agency approvals
- Mounting hardware, gaskets and user manual furnished with the unit
- Standard Air Conditioner models includes Active condensate management with heater strip, Power-off capability for door switch and other system requirements, Malfunction switch, Corrosion-resistant coating on condenser coil, Compressor heater, Head pressure control, Temperature range from -40 F/-40 C to 131 F/55 C
- Manifold set ships with 2 manifolds (1x supply and 1x return) and 2 sets of mounting brackets (total of 4 brackets incl. mounting hardware)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 550
- Height (H)
- 566
- Depth (D)
- 346
- Refrigerant
- R134a
- Nominal Voltage
- 230
- Protection Rating
- NEMA Type 12
- Material
- Stainless Steel 304
- Weight
- 65
Nominal Capacity Btu/h1,890
Number of Phases1
Width (W)260
Max Current2.9
Operating Temperature55
Remote Access ControlYes
Product FamilyExtreme Environments
FinishBrushed #4
