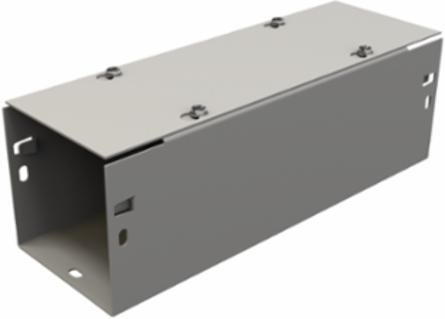

nVent Hoffman F44T1120GVP Straight Section Lay-in Flat Cover Type 1, 4x4x120, Gray, Steel
- MPN: F44T1120GVP
- UPC: 783510361099
- PPN: HOF-F44T1120GVP
CAD
$262.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Layin Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. This Straight Section Lay-in Flat-Cover Type 1 no KOs, F44T1120GVP item measures 4x4x120 inch with a material of Steel colored Gray.
Features
- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid-in along run
- Lay-in design eliminates the action of pulling wires or cables, which can result in insulation damage
- Flat-cover design supports mounting flush with walls or ceilings
- Covers feature keyhole screw slots which simplify cover installation and removal, and limit risk of losing securing screws
- Sections available in lengths from 12 to 120 inches, with or without knockouts
- 4"x4" and 6"x6" Straight Sections re-designed with Snap Connect features for ease-of-installation; sections are backwards compatible if a legacy U-Connector is present
Documentation & Downloads
Specifications
Additional
- Wireway
- Lay-In NEMA Type 1 Painted Flat-Cover Wireway
- Thickness
- 1.52
- Depth
- 3048
- Material
- Mild Steel
- IP Rating
- IP30
- Color
- Gray (ANSI 61)
- NEMA Rating
- NEMA Type 1 Indoor electrical protection
- Knockouts
- Available with or without knockouts
TypeStraight Section
Height102
Width102
FinishPowder Coated
Weight36.25
Connection TypeSnap-in
Cover FeatureKeyhole screw slots
