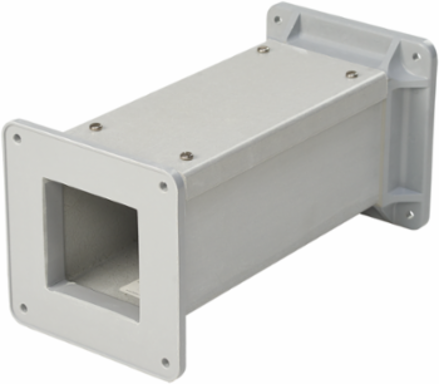

Nvent Hoffman F66W24FG Straight Section Feed-Through Type 12 and 3R, 6.00x6.00x24.00, Gray, Fiberglass
Nvent Hoffman F66W24FG Straight Section Feed-Through Type 12 and 3R, 6.00x6.00x24.00, Gray, Fiberglass
- MPN: F66W24FG
- UPC: 783510189808
- PPN: HOF-F66W24FG
- UNSPSC: 39131710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$989.69/ EA
Description
Straight Section Fiberglass Feed-Through Wireway Type 12 and 3R is available in multiple lengths. This Straight Section Feed-Through Type 12 and 3R, F66W24FG item measures 6.00x6.00x24.00 inch with a material of Fiberglass colored Gray.
Features
- Fiberglass Feed-Through Wireway, Type 12, 3R Straight Sections are used for enclosing wire and cable in wireway runs
- The temperature and chemically-resistant fiberglass protects in corrosive or dirty indoor or outdoor applications
- Sections are available in lengths from 12 inch to 60 inch
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
Specifications
Specifications
- BABA
- Contact Manufacturer
- Height (H)
- 152
- Depth (D)
- 610
- Finish
- Smooth Matte
- Color Code
- ANSI 61
- IP Rating
- IP55
- NEMA Rating
- 12 Indoor, dust-resistant
- Height
- 6 in
TypeStraight Section
Width (W)152
Protection RatingNEMA Type 12
ColorGray
Thickness (T)3.2
WirewayFiberglass Feed-Through Type 12 and 3R Wireway
Weight9.5
MaterialFiberglass
