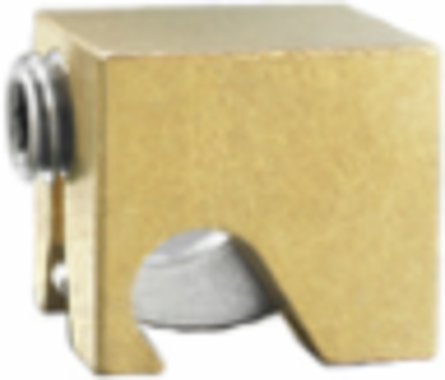

Weidmuller 2623930000 FB 16-50
- MPN: 2623930000
- PPN: WDM-2623930000
CAD
$29.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting
Documentation & Downloads
Specifications
Dimensions And Weights
- Width
- 20 mm
- Height
- 22.5 mm
- Depth
- 24 mm
- Net weight
- 0 g
Width (inches)0.787 inch
Height (inches)0.886 inch
Depth (inches)0.945 inch
Additional Technical Data
- Installation advice
- Direct mounting
Type of mountingwhen screwed in
Material Data
- Material
- Brass
ColourBrass coloured
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Storage temperature, max.
- 40 °C
- Ambient temperature
- -40°C bis +75°C
Storage temperature, min.10 °C
Storage temperature10 °C...40 °C
Rating Data
- Pollution severity
- 3
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 50 mm²
- Clamping screw
- M 6
- Number of connections
- 1
- Tightening torque, min.
- 5 Nm
- Wire connection cross section, finely stranded, max.
- 50 mm²
Clamping range, min.16 mm²
Connection directionon side
Stripping length33 mm
Type of connectionScrew connection
Wire connection cross-section, finely stranded, min.16 mm²
