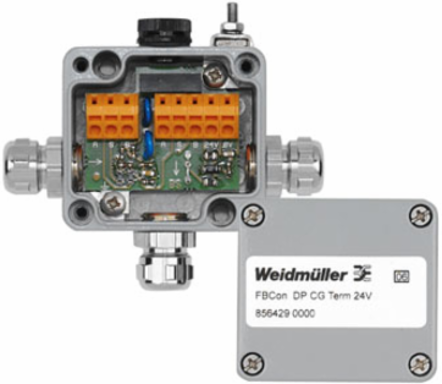

Weidmuller 8564290000 FBCON DP CG TERM 24V
- MPN: 8564290000
- PPN: WDM-8564290000
CAD
$350.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

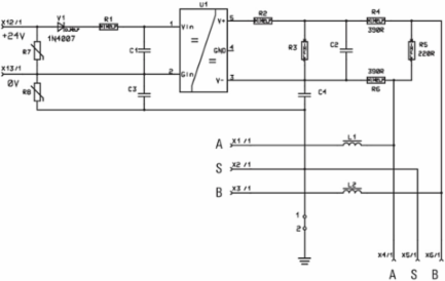

Standard distributor with bus termination (active), Terminator, IP66
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Length
- 64 mm
- Width
- 58 mm
- Height
- 36 mm
- Net weight
- 263 g
Length (inches)2.52 inch
Width (inches)2.283 inch
Height (inches)1.417 inch
Connection Data
- Clamping range, min.
- 0.5 mm²
Clamping range, max.1.5 mm²
Classifications
- ETIM 6.0
- EC001604
- eClass 9.0
- 27-24-26-08
- eClass 10.0
- 27-24-26-08
ETIM 7.0EC001604
eClass 9.127-24-26-08
UNSPSC26-12-16-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
- Storage temperature, max.
- 80 °C
- Operating temperature
- -40 °C...80 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Ambient temperature-40 °C...80 °C
