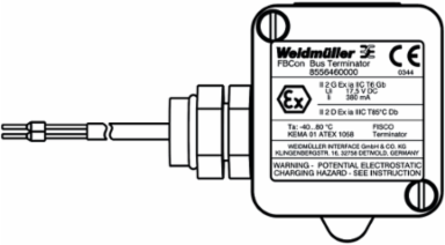

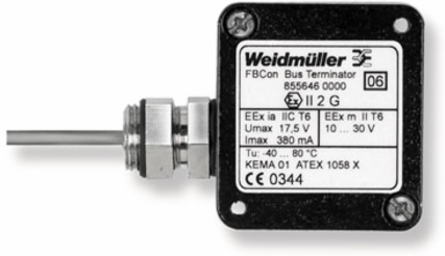

Weidmuller 8556460000 FBCON TERM.D EX FM
- MPN: 8556460000
- PPN: WDM-8556460000
CAD
$200.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard distributor for Ex applications EEx(ia), IP66
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, EAC, KEMAATEX |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 49 mm |
|---|---|
| Width | 45 mm |
| Height | 36 mm |
| Net weight | 179.49 g |
| Length (inches) | 1.929 inch |
|---|---|
| Width (inches) | 1.772 inch |
| Height (inches) | 1.417 inch |
Classifications
| ETIM 6.0 | EC001583 |
|---|---|
| eClass 9.0 | 27-14-31-54 |
| eClass 10.0 | 27-14-31-54 |
| ETIM 7.0 | EC001583 |
|---|---|
| eClass 9.1 | 27-14-31-54 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Ambient temperature | -40 °C...80 °C |
Ratings Iecex/Atex/Cul
| ATEX certificate | ATEX certificate.pdf |
|---|---|
| Certificate no. (cULus) | E141197 |
| Certificate No. (ATEX) | KEMA01ATEX1058 |
|---|
