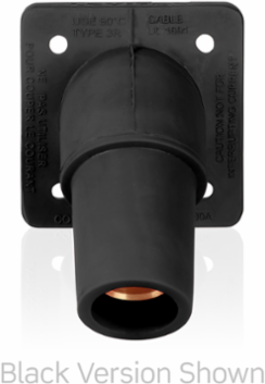

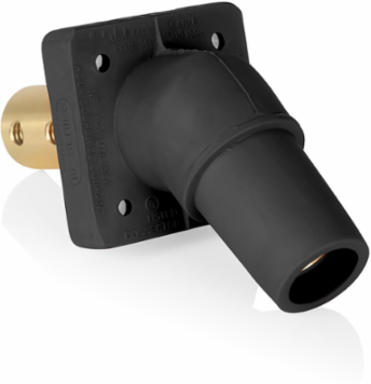

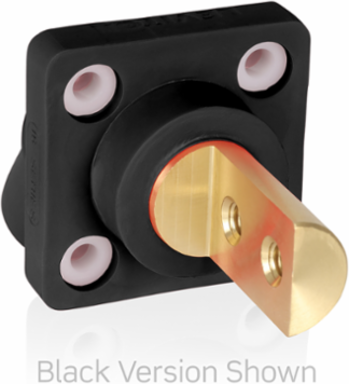

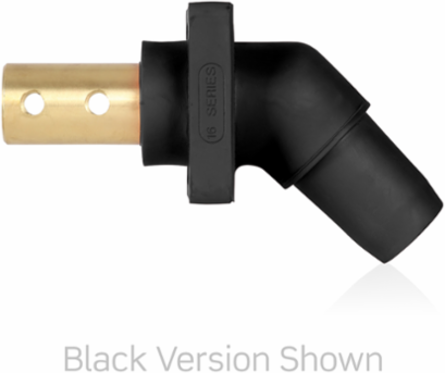

Leviton 16R36-E 16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar

16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar - https://media.province-electric.com/476/csv_leviton/medium/43224a7b9185ca451f9d0ab5c64dcdcb56366855-medium.png

16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar - https://media.province-electric.com/476/csv_leviton/medium/1e43fb96af141a562f5ff85285bce4b68d3b5c98-medium.png

16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar - https://media.province-electric.com/476/csv_leviton/medium/55a8991a06c52a2a507cd5efe5361989979d385d-medium.png

16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar

MPN: 16R36-E
UPC: 078477026120
PPN: LEV-16R36-E

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$89.20/ EA

Qty:

Loading add to cart quantity...

Description

16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Self-Clinching Nuts, Blue

Features

Color-coding provides fast and easy phase identification
Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications

Specifications

Material Specifications

Contact: Brass

InsulatorsSantoprene TPV

Mechanical Specifications

Cable Size Range: #2-4/0 AWG

Gender: Female

Connection TypeBus Bar-Double Hole

Termination TypeTaper-Nose

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Product Features

Color: Black

Series16 Series

Warranty

Warranty: 2-Year Limited

Electrical Specifications

Max. Amperage: 400A

Short Circuit Current Rating: 35kA

Max. Voltage600 VAC/DC

Standards & Certifications

CSA: 1691

UL: 1691

NEMA RatingType 3R
