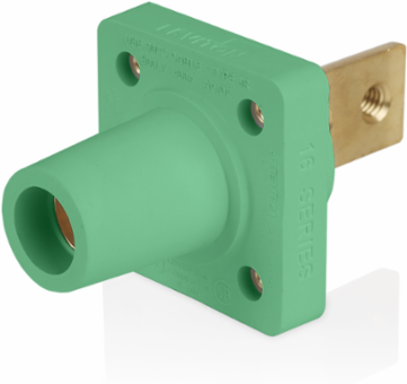

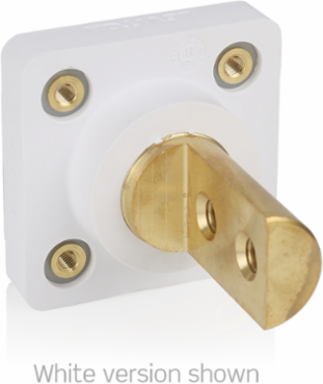

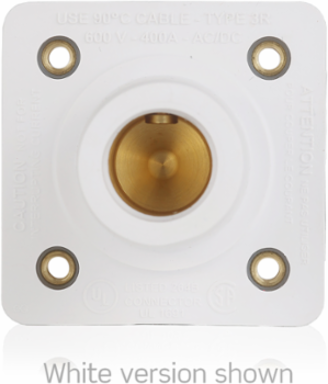

Leviton 16R34-B1G 16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts, Bulk Pack

16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts, Bulk Pack
16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts, Bulk Pack
16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts, Bulk Pack
16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts, Bulk Pack
  • MPN: 16R34-B1G
  • UPC: 078477022900
  • PPN: LEV-16R34-B1G

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$55.89/ EA

Description

16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Self-Clinching Nuts, Green, Bulk Pack (20)

Features

  • NEMA 3R rated for outdoor use when mated
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications

Specifications

Material Specifications

Contact
Brass
InsulatorsSantoprene TPV

Mechanical Specifications

Cable Size Range
#2-4/0 AWG
Gender
Female
Connection TypeBus Bar-Double Hole
Termination TypeTaper-Nose

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Color
Green
Special Features
PEM/Self-Clinching Nuts
Series16 Series

Warranty

Warranty
2-Year Limited

Electrical Specifications

Max. Amperage
400A
Short Circuit Current Rating
35kA
Max. Voltage644 VAC/DC

Standards & Certifications

CSA
1691
UL
1691
NEMA RatingType 3R
