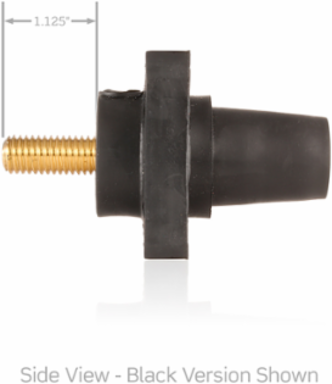

Leviton 16R24-1UB Female Receptacle 90-Degree, 400 Amp, #2-4/0 AWG, 1.125 Inch Threaded Stud
- MPN: 16R24-1UB
- UPC: 078477717745
- PPN: LEV-16R24-1UB
CAD
$80.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

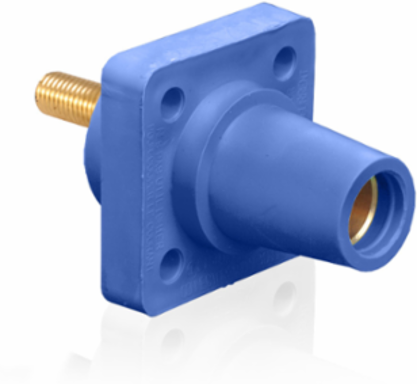

16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125" Threaded Stud, 400 Amp Max, 600VAC/DC, Blue
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw or crimp tube termination
- NEMA 3R rated for outdoor use when mated
- Designed with cylindrical profile to reduce snap
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA Certified
- File 152105
- NEMA Rating
- Type 3R
CSA Standard1691
UL Listed1691, 508 - 35k A / 600V Short Circuit Current Rating
Material Specifications
- Contacts
- Brass
Mechanical Specifications
- Cable Range
- 2-4/0 AWG
- Gender
- Female
Connection TypeThreaded Stud
Stud Length1.125"
Product Features
- Color
- Blue
Electrical Specifications
- Max. Amperage
- 400 Amp
Max. Voltage600 Volt
