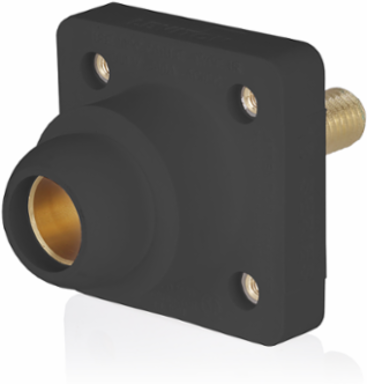

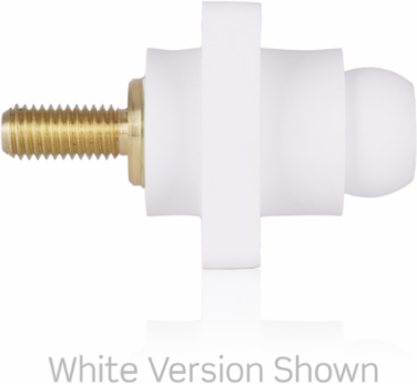

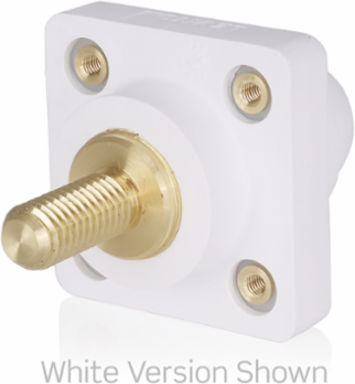

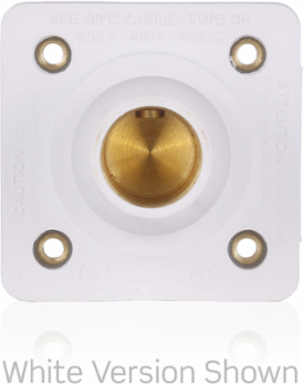

Leviton 18R26-1E 18 Series Female Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125" Threaded Stud, Self-Clinching Nuts
- MPN: 18R26-1E
- UPC: 078477022184
- PPN: LEV-18R26-1E
CAD
$101.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
18 Series Ball Nose Cam-Type Female Panel Mount Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125" Threaded Stud, 400 Amp Max, 600VAC/DC, Self-Clinching Nuts, Black
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA Standard
- 1691
- UL
- 1691
NEMA RatingType 3R
Material Specifications
- Contact
- Brass
InsulatorsSantoprene
Product Features
- Color
- Black
- Series
- 18 Series
FeaturePEM/Self-Clinching Nuts
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Cable Size Range
- #2-4/0
- Gender
- Male
- Max. Voltage
- 600 Volt
- Termination Type
- Ball-Nose
Connection TypeThreaded Stud
Max. Amperage400 Amp
SCCR35kA
