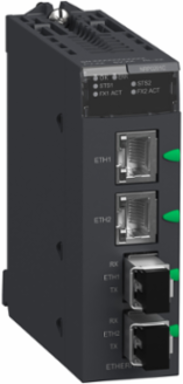

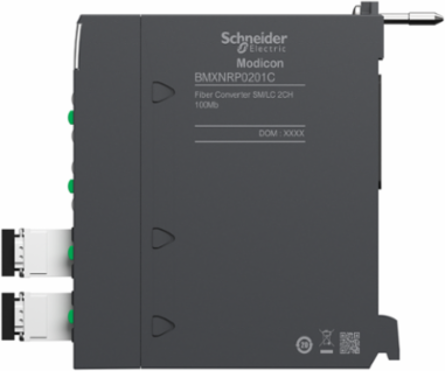

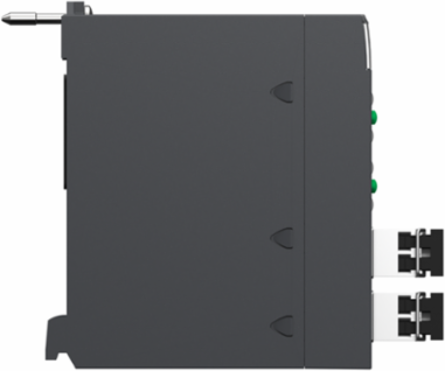

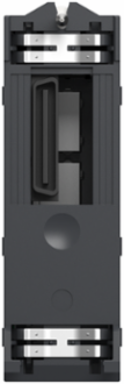

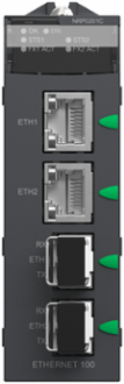

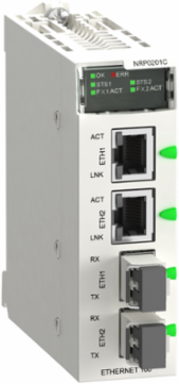

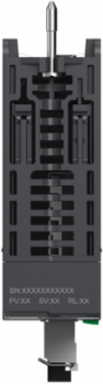

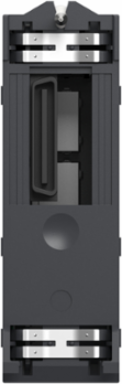

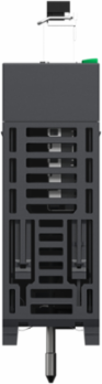

Schneider Electric BMXNRP0201C Fiber Converter, 2 Channel, 100Mb, Single Mode, IP20, -25-60 C
- MPN: BMXNRP0201C
- PPN: SCH-BMXNRP0201C
CAD
$2273.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This fiber converter from Schneider Electric serves as a reliable solution for enhancing data communication over single-mode fiber optics. Designed with two channels and capable of supporting speeds up to 100Mb, it ensures efficient data transfer and connectivity in a variety of industrial environments. With an operational temperature range of -25 C to 60 C, this device is built to withstand harsh conditions while maintaining optimal performance, making it an ideal choice for applications that demand robust and stable communication solutions. Its compliance with IP20 standards further emphasizes its commitment to protection against dust and solid objects, underscoring its durability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Complementary Attributes
- Rated Voltage
- 24 V
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- -15--8 dB 9/125 µm), -15--8 dB 9/125 µm)-15--8 dB 9/125 µm), -15--8 dB 9/125 µm)
- Local Signalling
- 1 LED (green) for power supply status1 LED (red) for error condition (ERR)2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity
- Certificate Agency
- CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.412
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 17 kg CO2 eq., 17.436
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 17.436
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402021EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 140 mA typical200 mA maximum
- Function Available
- hot swap
- Number Of Port
- 2 RJ45 100BASE-TX IEEE 802.3u2 fiber optic 100BASE-FX IEEE 802.3u
- Optic Fiber Type
- single mode
- Product Or Component Type
- fibre optic repeater
- Range Of Product
- Modicon X80
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 168 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 264.9024
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Height Nominal
- 100 mm
- Rise/Fall Time
- 2.5 ns
- Package Weight(Lbs)
- 256.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 17.436
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 212.75
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 9.8339
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 231.94
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -32.038
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -3.691
- Materials For Recycling (Kg) Installation [A5]
- 0.056
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 67365
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 212.75
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 98339
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 220.37
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 3502.464
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -10217
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 31907
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 209.55
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 98339
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 11162
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -10116
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 57225
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Receiver Sensitivity- 31...- 8 dBm, - 31...- 8 dBm
Carbon Footprint Of The Distribution Phase [A4]0.033476, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10191, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]150 kg CO2 eq., 149.8356363636
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
End Of Life Carbon Footprint0.412
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Dielectric Strength1400 V DC between field and bus500 V DC between channels
MarkingCE
Operating Distance0...15000 m
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Width Nominal32 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]17.412
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]0.412
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.0608
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-9.5482
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]83.882
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]72.258
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]51137
Net Use Of Fresh Water (M3) End Of Life [C1-c4]11183
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-22107
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]10608
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-95482
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]11369
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]10021
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]76259
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]31907
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10608
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-95482
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]11162
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]65098
Water Use (M3 Eq) End Of Life [C1-c4]42725
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2402021EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...13123.36 ft (0...4000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint167.8190223636
Environmental DisclosureENVPEP2402021EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- fibre optic repeater
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
