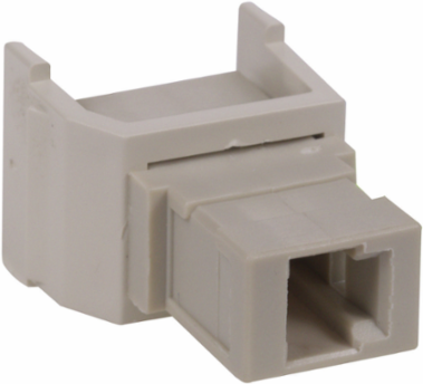

Hubbell Premise Wiring SFMTRJEI Fiber Optic Connector MT-RJ Snap Fit, Ivory Housing, 0.200 Inch Width
Hubbell Premise Wiring SFMTRJEI Fiber Optic Connector MT-RJ Snap Fit, Ivory Housing, 0.200 Inch Width
- MPN: SFMTRJEI
- UPC: 662620848716
- PPN: HBL-SFMTRJEI
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.55/ EA
Description
Fiber Optic Connectors, Snap-Fit, MT- RJ, Phosphor Bronze Sleeves, Electric Ivory Housing.
Features
- Snap Fit
- Ivory Housing
- Standard
- MT-RJ
- Ivory Adapter
- Standard Product
Specifications
Specifications
- Color - Housing
- Ivory
- Width
- 0.200 in
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-12
- Application
- Data Outlet
- Fiber Size
- 125 Micron
- Mounting
- Standard
- Return Loss
- 26
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Receptacle
- Style
- MT-RJ
- Description - Invoice
- FIBER, SNAP-FIT,MT-RJ,BE,EI
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Each - Pack Description
- Each
Country of OriginTW
Each - Width0.200 in
Size.58" X .76"
ColorIvory
Insertion Loss0.75 dB
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-12
Temperature Rating0C to 70C
Mounting TypeStandard
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeHPWALL2
MaterialBronze, Phosphor
BOX SIZE4.437x8.000x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620848716
Case Weight32.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
