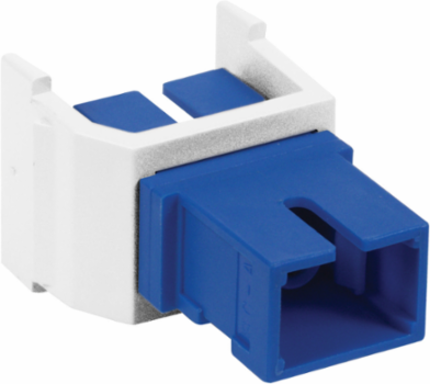

Hubbell Premise Wiring SFSCSAQW Fiber Optic Connectors SC Simplex 0.58 Inch x 0.76 Inch Aqua White Housing
- MPN: SFSCSAQW
- UPC: 662620241821
- PPN: HBL-SFSCSAQW
- UNSPSC: 43223310
CAD
$23.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, SC, Simplex, Zircon Sleeves, Aqua, White Housing.
Features
- Snap Fit
- White Housing
- Standard
- SC Simplex
- Aqua Adapter
- Standard Product
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Width | 0.800 in |
| Size | .58" X .76" |
| Color | Aqua |
| Environmental Conditions | Indoor |
| Insertion Loss | 0.75 dB |
| Repeatability | 0.1 dB |
| Service Life | 500 matings |
| Standard | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3 |
| Temperature Rating | 0C to 70C |
| Connectivity | Receptacle |
| Enclosure Type | Various |
| Style | SC Simplex |
| Description - Invoice | FIBER, SNAP-FIT,SC SMPLX,AQ,ZIRC,WH |
| Harmonization Code | 8536700000 |
| MSDS Flag | No |
| Sub Class Code | HPWALL2 |
| Material | Ceramic |
| BOX SIZE | 4.400x3.900x6.400 (in) |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 662620241821 |
| Each - Pack Description | Each |
| NAICS Code | 3342104145 |
| Color - Housing | White |
|---|---|
| Industry Standard(s) | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3 |
| Application | Data Outlet |
| Enclosure | Various |
| Fiber Size | 125 Micron |
| Mounting | Standard |
| Return Loss | 55 |
| Special Features | Standard Product |
| Sub Brand | OptiChannel |
| General Literature Asset 1 Display Text | Integrating AV Systems |
| Display Size | .58" X .76" |
| Mounting Type | Standard |
| Class Code | A68 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | SFSCAQW |
| Material - Mounting Hardware | Snap-In, Keystone |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 |
| Lowest Level UOM | Each |
