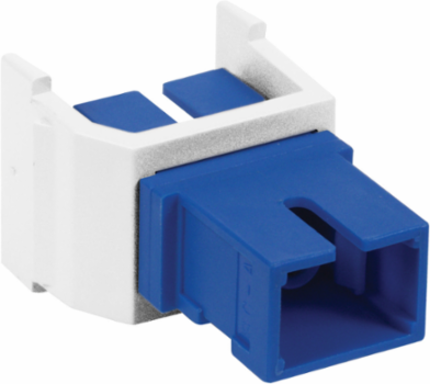

Hubbell Premise Wiring SFSCSBEW Fiber Optic Connector SC Simplex with Zircon Sleeves, Beige, White Housing, 0.58" X 0.76"
Hubbell Premise Wiring SFSCSBEW Fiber Optic Connector SC Simplex with Zircon Sleeves, Beige, White Housing, 0.58" X 0.76"
- MPN: SFSCSBEW
- UPC: 662620241807
- PPN: HBL-SFSCSBEW
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.20/ EA
Description
Fiber Optic Connectors, Snap-Fit, SC, Simplex, Zircon Sleeves, Beige, White Housing.
Features
- Snap Fit
- White Housing
- Standard
- SC Simplex
- Beige Adapter
- Standard Product
Specifications
Specifications
- Color - Housing
- White
- Width
- 1.700 in
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Application
- Data Outlet
- Fiber Size
- 125 Micron
- Mounting
- Standard
- Return Loss
- 55
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Receptacle
- Style
- SC Simplex
- Description - Invoice
- FIBER, SNAP-FIT,SC SMPLX,BE,ZIRC,WH
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- BOX SIZE
- 4.400x2.000x6.400 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620241807
- Each - Pack Description
- Each
Country of OriginTW
Each - Width1.700 in
Size.58" X .76"
ColorBeige
Insertion Loss0.75 dB
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
Temperature Rating0C to 70C
Mounting TypeStandard
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSFSCBEW
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
