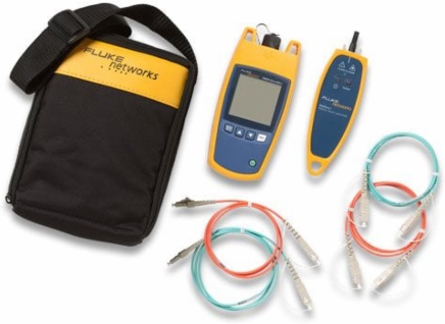

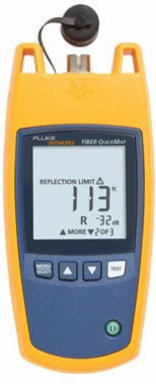

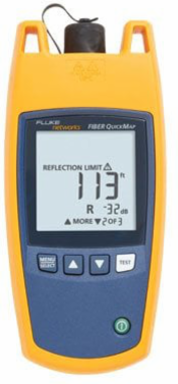

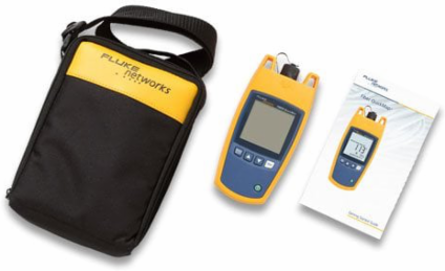

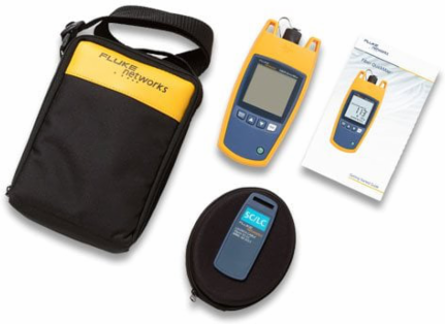

Fluke FQM-M Fiber QuickMap™
- MPN: FQM-M
- UPC: 754082138211
- PPN: FLU-FQM-M
CAD
$3363.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

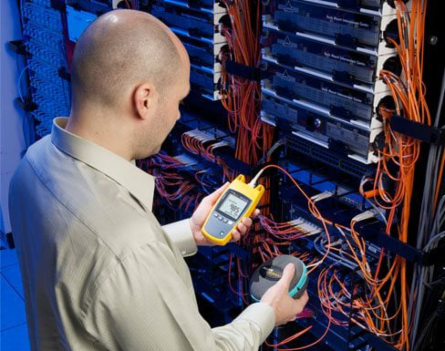

VFLs work well for exposed lengths of fiber near a patch panel by illuminating bad connections and breaks. They are not very helpful for cable runs more than a few meters, or when the cable not visible or accessible, or when the laser light can’t penetrate the jacket. Optical Time Domain Reflectometers (OTDR) provides graphical data and analysis along the entire length of a cable, way beyond the reach of a VFL, but they can be expensive and require more time to and skill to operate. Fiber QuickMap fills the gap between a VFL and an OTDR. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber. They also identify live fiber
Documentation & Downloads
Specifications
Models
- Operating temperature with the battery
- 0ºC to 50ºC
- Operating relative humidity (without condensation)
- 95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
- Shock
- 1 meter drop test
- EMC
- EN 61326-1: 2004
- Battery life
- 1500 tests (typical)
- LCD type
- Backlit black and white (segments)
- Auto turn off
- Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
- Output wavelengths
- 850 nm ± 10 nm
- Dynamic range
- >11 dB
- Maximum number of incidents shown
- 9
- Testing speed
- < 6 seconds typical
- Fiber types tested
- 50/125 µm or 62.5/125 µm multimode
- Reflectance accuracy4
- ± 4 dB
- Detection of loss incidents5
- 0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
- Live fiber detection
- Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Non-operating temperature-20ºC to 60ºC
VibrationRandom, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Altitude3000m

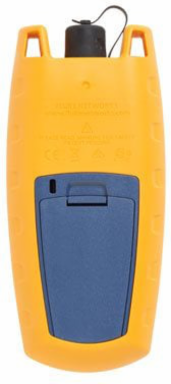

Battery type2 AA alkaline batteries (no battery charger)
Laser safetyClass 1 CDRH Complies to EN 60825-2
Index of refraction range1.45 to 1.5 (factory default is 1.496)
Factory calibration intervalNone
Laser classificationClass 1 CDRH Complies to EN 60825-2
Maximum distance1500 meters or 4921 feet
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)± (3 m + 0.1 % x length) for non-reflective incidents || ± (1 m + 0.1 % x length) for reflective incidents

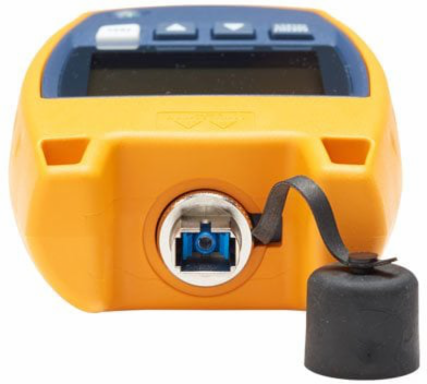

ConnectorRemovable/cleanable SC adapter, UPC polish
Detection of reflective incidents3-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Maximum reflectance measurement-20 dB
Bulkhead qualityIf no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Certifications and compliance|| Conforms to relevant Australian standards || Conforms to relevant European Union || Conforms to FCC Rules, Part A, Class A || Listed by the Canadian Standards Association CSA || || directives || C22.2 No. 61010.1.04
