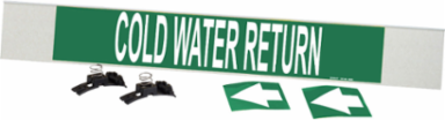

Brady 80551 Fiberglass Carrier Pipe Marker: COLD WATER RETURN4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 80551
- UPC: 754473805517
- PPN: BRD-80551
- UNSPSC: 55121737
CAD
$97.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The B-681 high performance pipemarker is a surface printed polyester label with a polyester overlaminate that is applied to a fiberglass plastic carrier.
Features
- Ideal for use in areas where excellent chemical and abrasion resistance is required

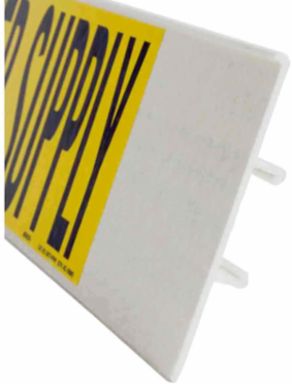

- Style HPHV (High Performance High Visibility) pipe markers are supplied on a fiberglass plastic carrier and are ideal for 8" and larger pipe diameters

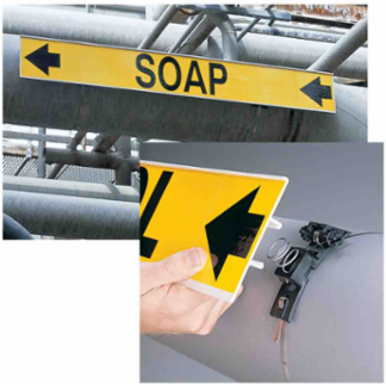

- Easy strap-on installation of fiberglass plastic carrier
- Can be used indoors and outdoors
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- White on Green
- Enables Industry Compliance
- ANSI A13.1-2007
- Pipe Marker Mounting Style
- Fiberglass Carrier
- Pre-Printed Areas on Label
- Pipe Contents
- Text Legend
- COLD WATER RETURN
- Brady Material Number
- B-681
- Laminated
- Laminated
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Dimensions
- 4 in H x 24 in W
- Dimensions 2
- 4 in H x 24 in W
- Height (mm/cm/m)
- 101.6 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 203.2 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 4 in H x 24 in W
- Size
- HPHV
- Thickness (mm/cm/m)
- 0.13 mm
- Width (mm/cm/m)
- 60.96 cm
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy
LanguageEnglish
Pipe Marker StyleHPHV
Primary Noun, Basic FunctionPipe Marker
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialPolyester with Polyester Overlaminate
SAP B-NumberB-681
Character Height (in/ft/yd)3.5 in
Dimensions (Metric)101.6 mm H
Height (in/ft/yd)4 in
Maximum Service Temperature °C110 °C
Minimum Application Temperature °C-18 °C
Minimum Outside Pipe Diameter (in/ft/yd)8 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 8" Dia. or larger
Sign Size-General4 in x 24 in
Thickness (in/ft/yd)0.0051 in
Width (in/ft/yd)24 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
