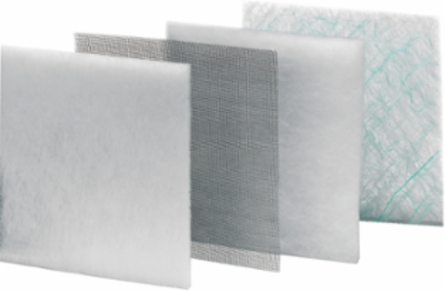

Schneider Electric NSYCAF223T Fine Filter G3 223x223mm for ClimaSys Accessory Set of 5
- MPN: NSYCAF223T
- PPN: SCH-NSYCAF223T
CAD
$34.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Prisma P fine filter G3 for outlet grille or fan cut-out. 223 x 223mm cut-out. External is 268 x 248 mm. Thermal management accessory. Between enclosure and outlet grille mounting. Compatible with ClimaSys CV. Synthetic Material. Set of 5.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02378176239151913, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0035388026678114947, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Material
- synthetic material
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- filter
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Thickness
- 8 mm
- Pep Code
- ENVPEP2012014EN
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- cut-out: 212 mm
- Accessory / Separate Part Category
- thermal management accessory
- Cut-out Dimensions
- 223 x 223 mm cut-out
- Package Weight(Lbs)
- 12.000 g
- Warranty (In Months)
- 18
- Customs Code
- 8421390115
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.021993110537552825
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.06767628940003713
Local Data StatusPublishable
Return IndicatorN
Preventive Maintenance12
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Locationbetween enclosure and outlet grille
Product NameClimaSys CA
Quantity Per Setset of 5
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; High voltage; 2020; Europe, EU-27
Recyclability Potential In %8
Width Nominalcut-out: 212 mm
Accessory / Separate Part Destinationoutlet grille 268 x 248 mm
Nbr. Of Units In Pkg.1
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.11698996499692058
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2012014EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2012014EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- filter
ETIM
- ETIM 8
- EC002513
ETIM 9EC002513
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
