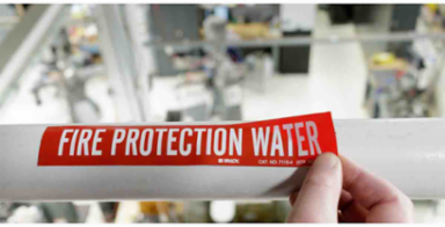

Brady 7110-4 FIRE PROTECTION WATER Pipe Marker, 1.125" H x 7" W, Card of 4 Each, Fits Pipes 0.75" Dia. Thru 2.375" Dia.
- MPN: 7110-4
- UPC: 754473793586
- PPN: BRD-7110-4
- UNSPSC: 55121737
CAD
$4.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

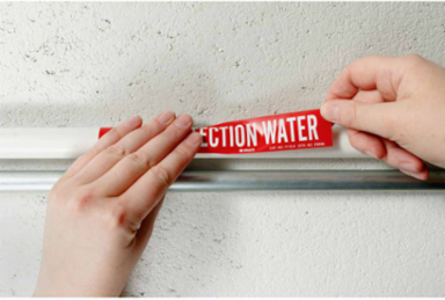

Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
Features
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 4 pipe markers measure 1-1/8 in. x 7 in., comes with four markers per card and fit pipe diameter 3/4 in. to 2-3/8 in.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Documentation & Downloads
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Color | White on Red |
| Enables Industry Compliance | ANSI A13.1-2007 |
| Language | English |
| Pipe Marker Style | 4 |
| Primary Noun, Basic Function | Pipe Marker |
| Quantity per Card or Sheet | 4 |
| Self-Adhesive Pipe Marker Format | Die-Cut on Cards |
| Adhesive Type | Permanent Acrylic |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Vinyl |
| SAP B-Number | B-946 |
| Character Height (in/ft/yd) | 0.75 in |
| Dimensions (Metric) | 28.6 mm H |
| Height (in/ft/yd) | 1.125 in |
| Maximum Outside Pipe Diameter (in/ft/yd) | 2.375 in |
| Maximum Service Temperature °C | 82 °C |
| Minimum Application Temperature °C | -18 °C |
| Minimum Outside Pipe Diameter (in/ft/yd) | 0.75 in |
| Minimum Service Temperature °C | -40 °C |
| Overall Size | Fits Pipes 0.75" Dia. Thru 2.375in Dia. |
| Size | 4 |
| Thickness (mm/cm/m) | 0.102 mm |
| Width (mm/cm/m) | 177.8 mm |
| Brand Name | Brady® |
|---|---|
| Compatible Surface Types | General |
| Finish | Gloss |
| Pipe Marker Mounting Style | Self-Adhesive |
| Pre-Printed Areas on Label | Pipe Contents |
| Printer and Label Applications | General Identification; Pipe Marker |
| Reflective Type | Non-Reflective |
| Text Legend | FIRE PROTECTION WATER |
| Brady Material Number | B-946 |
| Label Properties | Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Water-Resisitant |
| Average Outdoor Durability | 8 to 10 Years |
| Dimensions | 1.125 in H x 7 in W |
| Dimensions 2 | 1.125 in H x 7 in W |
| Height (mm/cm/m) | 28.6 mm |
| Maximum Outside Pipe Diameter (mm/cm/m) | 60.33 mm |
| Maximum Service Temperature °F | 180 °F |
| Minimum Application Temperature °F | 0 °F |
| Minimum Outside Pipe Diameter (mm/cm/m) | 19.05 mm |
| Minimum Service Temperature °F | -40 °F |
| Sign Size-General | 1.125 in x 7 in |
| Thickness (in/ft/yd) | 0.004 in |
| Width (in/ft/yd) | 7 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
