PMA SGG-56 Flexible Conduits & Fittings
- MPN: SGG-56
- UPC: 078620997000
- PPN: T-B-SGG-56
CAD
$39.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

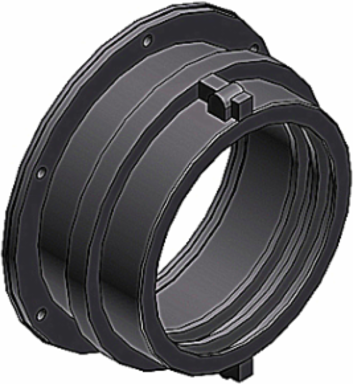

PMAGRIP Gray Straight Flange, Material - Polyamide 6, Fits to Conduit Size NW - 56
Features
- Very high impact resistance
- Vibration-proof connection to PMAFLEX conduits
- High conduit pull-out strength
- Selectable flange seal
- Very good chemical properties
- Self-extinguishing
- Free from halogens and cadmium
- Using the enclosed seals an ingress protection rating of up to IP65 can be achieved
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 31162906 Hose or pipe clamps |
|---|---|
| Brand Name | PMA |
| Special Features | Very High Impact Resistance |
| Material | Polyamide 6 |
| Color | Gray |
| IGCC | 3064 Hose or pipe clamps |
|---|---|
| Type | Flexible Conduits & Fittings |
| Application | For Cable Protection Systems In a Wide Range of Industrial Applications |
| Size | NW56 |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP65 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread material | Polyamide |
| Total length | 60mm |
| Material sealing | Other |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
| Nominal diameter | 68mm |
|---|---|
| Model | Straight |
| Construction type | Flange |
| Thread connection size | None |
| Thread length | 0mm |
| Material | Polyamide |
| Colour | Grey |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | N |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Dimensions (inches) | 15.748x15.748x14.173 |
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 0.07 lbs. Each |
